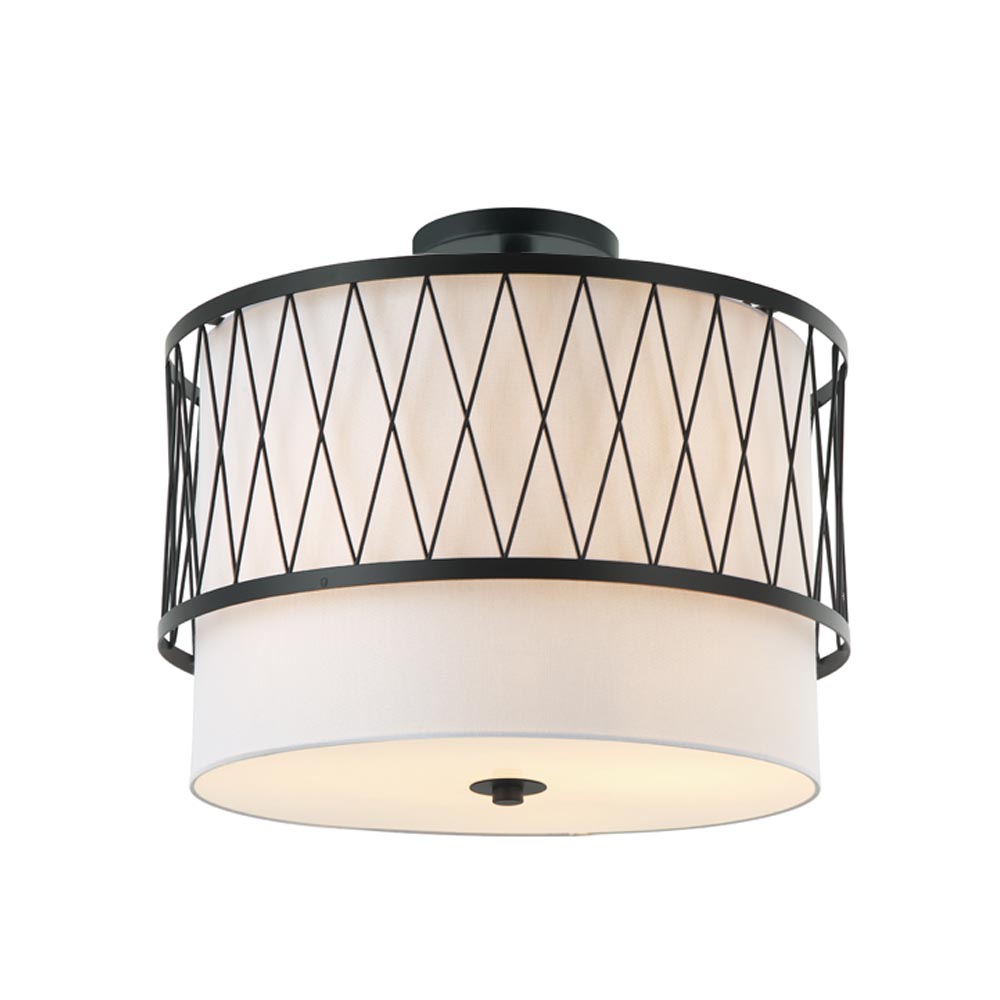

Echo 20″
Echo 20″
SKU:MXA3086-5307-07
(Swatch image not available)
NOTE: Image may not reflect selected features.
Specifications
Semi-Flush / Black Metal Frame / White Linen shade with White Glass Lens & Black Hardware.
| Part Number | MXA3086-5307-07 |
| Finish | Matte Black |
| Shade | Warm White/Black |
| Lens | White Glass |
| Dimensions | W20″ X H12″ |
| Maximum Dimensions | W20″ X H14″ |
| Wattage | 35 |
| Delivered Lumens | 2100 |
| Disclaimer: Delivered Lumens are based on calculations – Please contact factory for IES Files if required. | |
| Dimmable | Yes |

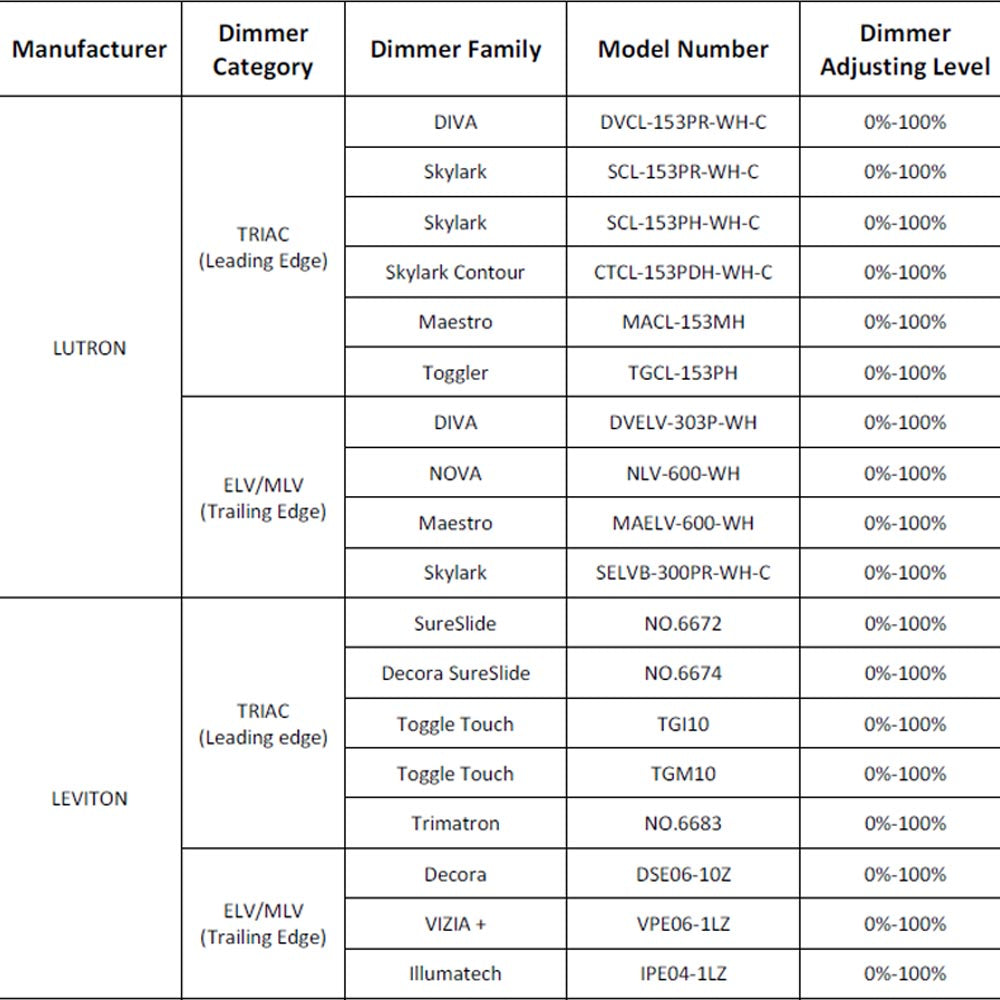

| Type of Dimmer | Triac or ELV |
| Dimming Percentage | 10%-100% |
| CRI | 90 |
| LED Life | L70/50Khrs. |
| Color Temperature | 3000 |
| Color Temperature Options | 27K-30K-35K-40K MOQ may apply |
| LED Type | AC LED Module |
| Location | Dry Rated |
| Warranty | 5 Year Limited |
| Bulbs Included | 1 X 35 Watt Integrated LED |
| Certification | c-CSA-us or Equivalent |
| Voltage | 120 |
