"MX LED-SET"
{"certification":"c-CSA-us or Equivalent","color_temp":"30K-50K-65K","cri":"90.0","delivered_lumens":"80.0","dimming_percentage":"10%-100%","download1_url":"https:\/\/maxilitelighting.com\/instructions\/mx-led-set-instructions.pdf","finish":"Pewter","glass":"White","hasQuickShip":"false","height":"0.5","included_count":"1.0","included_desc":"67 Watt Integrated LED","lamping":"LED","led_life":"L30\/50khrs","length":"3.30709","location":"Dry Rated","max_height":"0.5","max_length":"192.0","max_width":"0.5625","shade_material":"Acrylic","type_of_dimmer":"Triac","variant_description":"Maxi-Link Kit - Premium 24V LED, 3 CCT adjustable under cabinet\/garage LED lights, connect up to 5m or 16' with no gap or dots, Kit Includes 3 pieces (MX CT-3) Length 84mm or 3.30709\", 3 pieces (MX CT-10)Length 260mm or 10.2362\", 3 pieces(MX CT-19) Length 500mm or 19.685\", 3 pieces (MX CT-39) Length 1000mm, or 39.3701\" 1 piece 3CCT push button switch to change color temp \u0026 turn the LED's On\/Off (MX BUT), 2 pieces Adjustable illuminated elbow (CT-ELB) \u0026 2 piece (MX CT-JMP) 2m or 6.56168' jumper wire to connect 2 modules together \u0026 1 piece (MX CT-DR-96W) 75W 24V LED - ELV dimmable driver with remote enclosure - W:3\" L:14.75\" H:1.875\" - Up to 67W of LED Tape to allow for a 10% margin to allow for maximum performance.","voltage":"24V","warranty":"3 Year Limited","wattage":"67.0","width":"0.5625","year":"2021.0"}
product.selected_or_first_available_variant.featured_image
files/mx_led-set.jpg
Maxi-Link
Maxi-Link
SKU:MX LED-SET
(Swatch image not available)
NOTE: Image may not reflect selected features.
Specifications

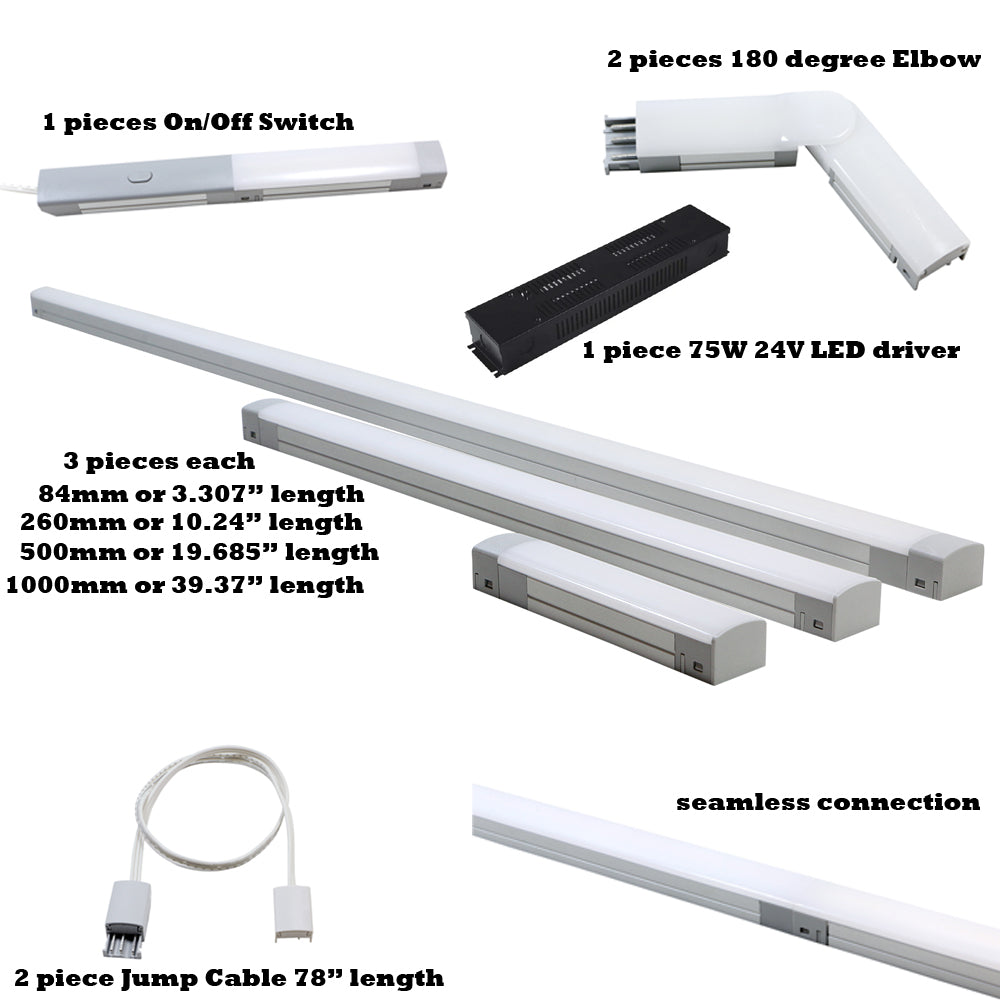

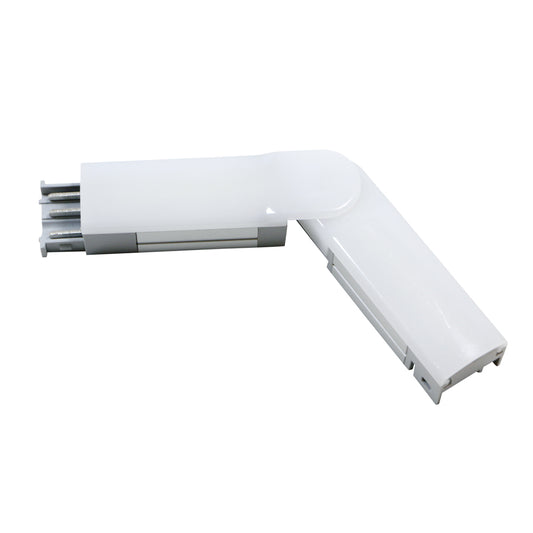

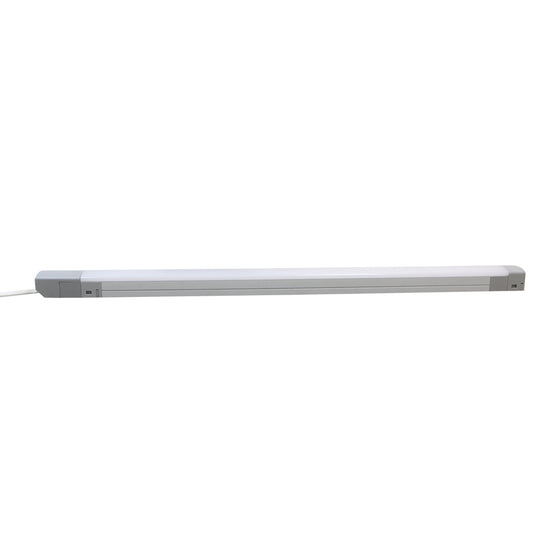

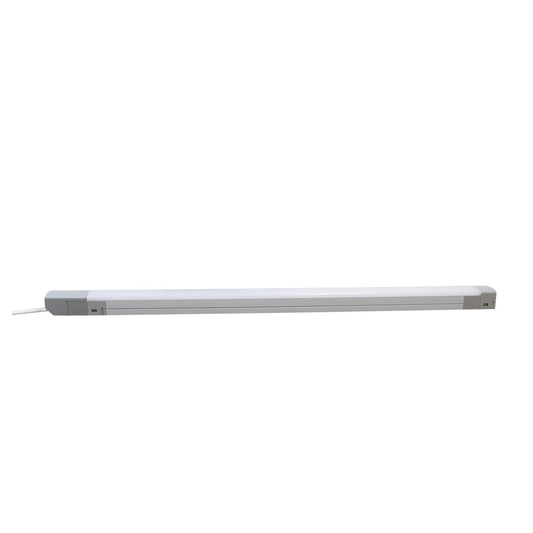

Maxi-Link Kit - Premium 24V LED, 3 CCT adjustable under cabinet/garage LED lights, connect up to 5m or 16' with no gap or dots, Kit Includes 3 pieces (MX CT-3) Length 84mm or 3.30709", 3 pieces (MX CT-10)Length 260mm or 10.2362", 3 pieces(MX CT-19) Length 500mm or 19.685", 3 pieces (MX CT-39) Length 1000mm, or 39.3701" 1 piece 3CCT push button switch to change color temp & turn the LED's On/Off (MX BUT), 2 pieces Adjustable illuminated elbow (CT-ELB) & 2 piece (MX CT-JMP) 2m or 6.56168' jumper wire to connect 2 modules together & 1 piece (MX CT-DR-96W) 75W 24V LED - ELV dimmable driver with remote enclosure - W:3" L:14.75" H:1.875" - Up to 67W of LED Tape to allow for a 10% margin to allow for maximum performance.
| Part Number | MX LED-SET |
| Finish | Pewter |
| Lens | White |
| Dimensions | W0.5625″ X H0.5″ X L3.30709″ |
| Maximum Dimensions | W0.5625″ X H0.5″ X L192″ |
| Wattage | 67 |
| Delivered Lumens | 80 |
| Dimmable | Yes |
| Type of Dimmer | Triac |
| Dimming Percentage | 10%-100% |
| CRI | 90 |
| LED Life | L30/50khrs |
| Color Temperature | 30K-50K-65K |
| Location | Dry Rated |
| Warranty | 3 Year Limited |
| Bulbs Included | 1 X 67 Watt Integrated LED |
| Certification | c-CSA-us or Equivalent |
| Voltage | 24 |
