Downloads
Some downloads are only accessible to logged-in users. To access additional downloads, please sign in or create an account.
"MXA3414-72"
{"certification":"c-CSA-us or Equivalent","color_temp":"27-30-35-40-50K","color_temp_option":"Selectable","cri":"90.0","delivered_lumens":"1800.0","dimming_percentage":"10%-100%","download2_name":"ELV Triac Dimming Info","download2_url":"elv_triac_dimming.pdf","finish":"Black\/Aged Brass","glass":"White Acrylic","hasQuickShip":"false","height":"2.0","included_count":"1.0","included_desc":"30 Watt Integrated LED","lamping":"LED","led_life":"L70\/50Khrs.","led_type":"AC LED Module","location":"Dry Rated","max_height":"2.0","max_width":"15.0","shade_material":"Acrylic","type_of_dimmer":"Triac or ELV","variant_description":"90 CRI - Flush-Mount Ceiling Light with white acrylic Lens - Dedicated LED Selectable 5CCT in Black\/Aged Brass Finish.","voltage":"120.0","warranty":"5 Year Limited","wattage":"30.0","width":"15.0","year":"2024.0"}
product.selected_or_first_available_variant.featured_image
files/mxa3414-72.jpg

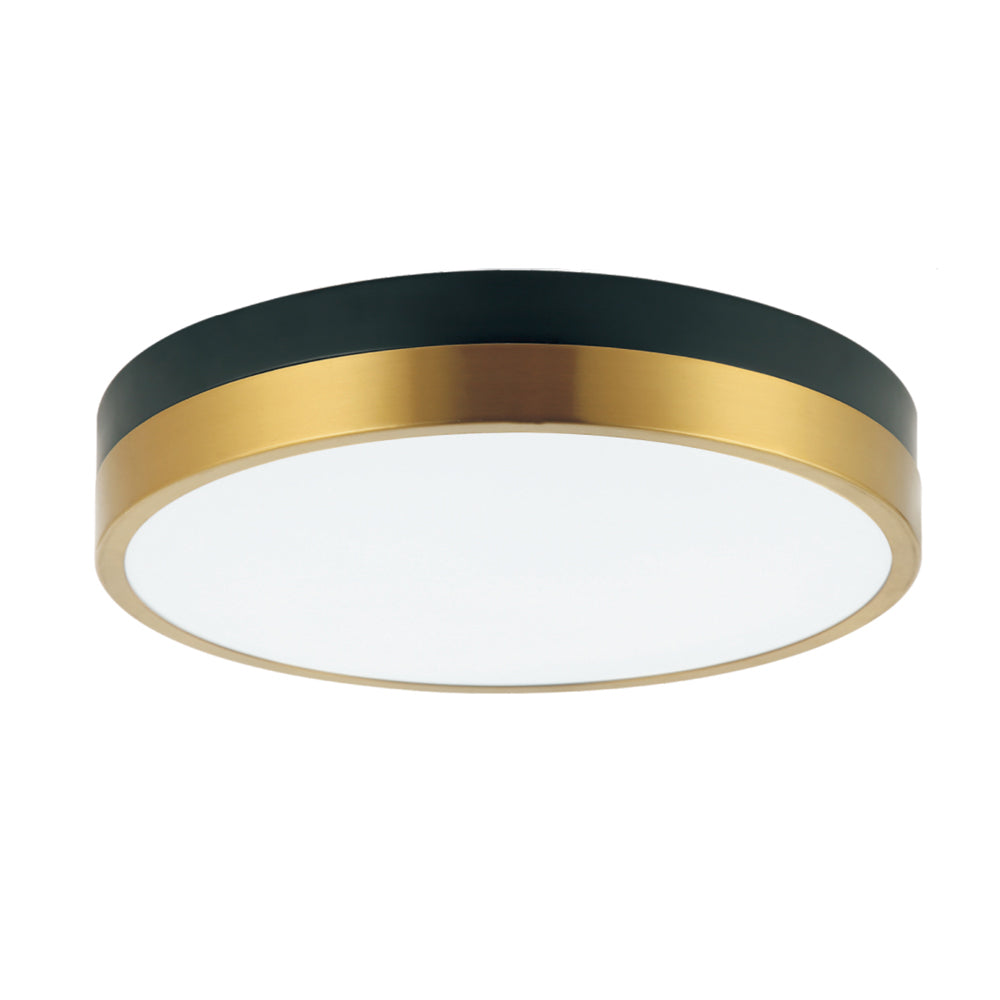

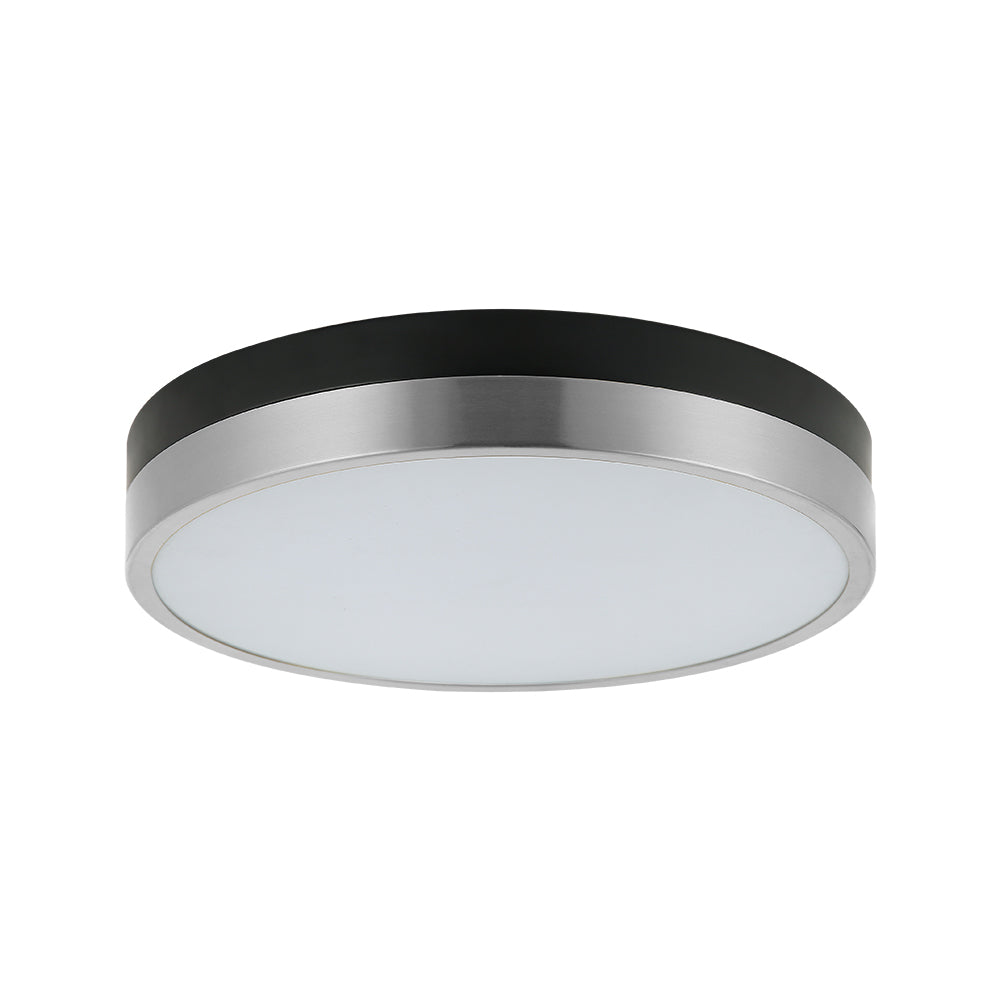

Svelte - 1800 Lumens
Svelte - 1800 Lumens
SKU:MXA3414-72
(Swatch image not available)
NOTE: Image may not reflect selected features.
Specifications
90 CRI - Flush-Mount Ceiling Light with white acrylic Lens - Dedicated LED Selectable 5CCT in Black/Aged Brass Finish.
| Part Number | MXA3414-72 |
| Finish | Black/Aged Brass |
| Lens | White Acrylic |
| Dimensions | W15″ X H2″ |
| Maximum Dimensions | W15″ X H2″ |
| Wattage | 30 |
| Delivered Lumens | 1800 |
| Disclaimer: Delivered Lumens are based on calculations – Please contact factory for IES Files if required. | |
| Dimmable | Yes |
| Type of Dimmer | Triac or ELV |
| Dimming Percentage | 10%-100% |
| CRI | 90 |
| LED Life | L70/50Khrs. |
| Color Temperature | 27-30-35-40-50K |
| Color Temperature Options | Selectable |
| LED Type | AC LED Module |
| Location | Dry Rated |
| Warranty | 5 Year Limited |
| Bulbs Included | 1 X 30 Watt Integrated LED |
| Certification | c-CSA-us or Equivalent |
| Voltage | 120 |
