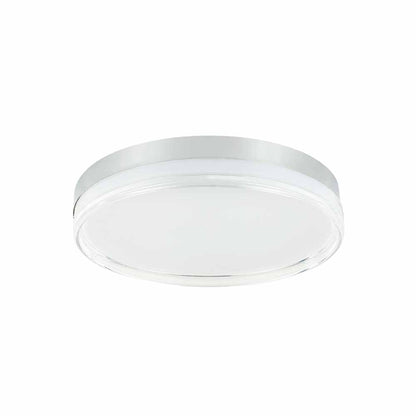

files/mxa3419-11.jpg
Luminara
Luminara
SKU:MXA3419-07
(Swatch image not available)
NOTE: Image may not reflect selected features.
Specifications
12" dia. - Selectable 5CCT Flush-Mount Ceiling or Wall Light with Clear & White Acrylic Lens in Black Finish
Part Number | MXA3419-07 |
Finish | Matte Black |
Lens | Clear/White Acrylic |
Dimensions | W12″ X H2.75″ |
Maximum Dimensions | W12″ X H2.75″ |
Wattage | 20 |
Delivered Lumens | 800 |
Disclaimer: Delivered Lumens are based on calculations – Please contact factory for IES Files if required. | |
Dimmable | Yes |
Type of Dimmer | Triac or ELV |
Dimming Percentage | 10%-100% |
CRI | 90 |
LED Life | L70/50Khrs. |
Color Temperature | 27-30-35-40-50K |
Color Temperature Options | Selectable |
LED Type | AC LED Module |
Location | Dry Rated |
Warranty | 5 Year Limited |
Bulbs Included | 1 X 20 Watt Integrated LED |
Certification | c-CSA-us or Equivalent |
Voltage | 120 |
