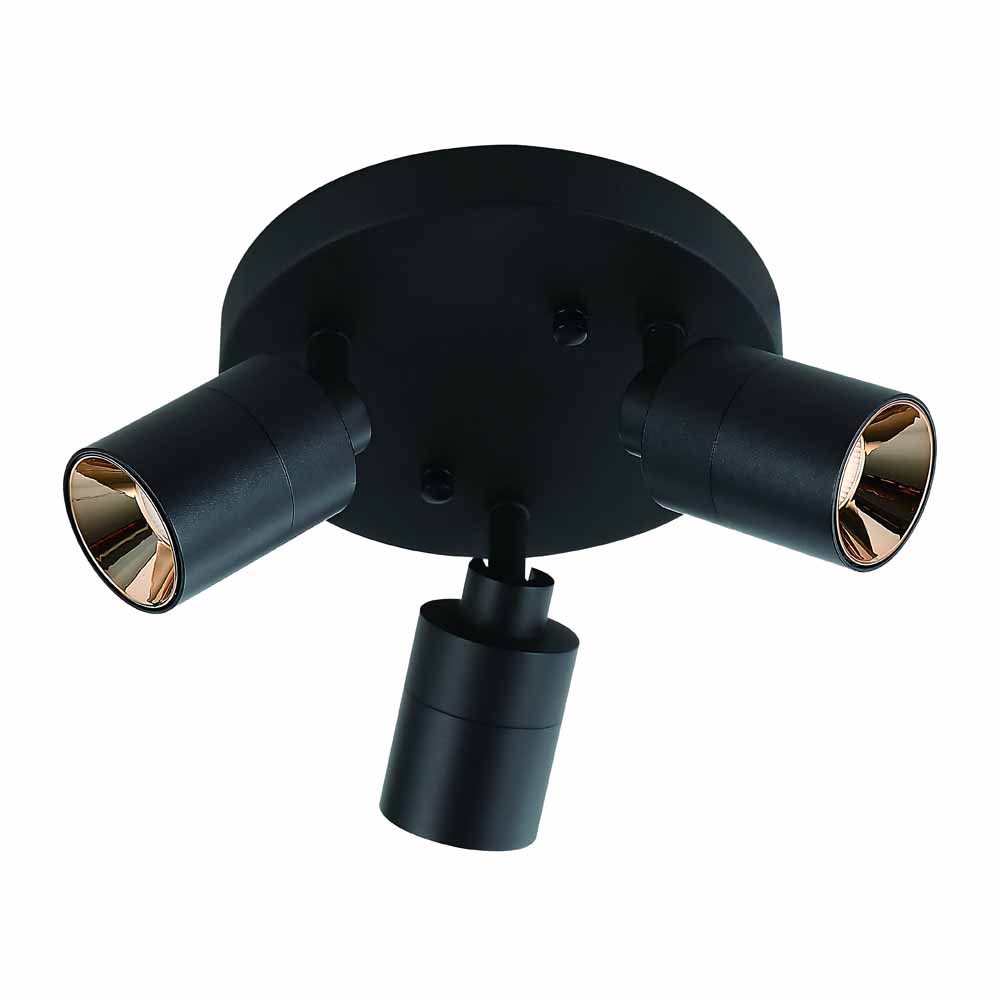

Vinci - Wall or Ceiling
Vinci - Wall or Ceiling
SKU:MXD3636C3-19
(Swatch image not available)
NOTE: Image may not reflect selected features.
Specifications
Dedicated LED Adjustable Spot Light - 4 Changeable Reflectors, Polished Chrome, Gold, Black & White , Wall or Ceiling Fixture, Multi-directional 3 Light Fixed head in White Finish
Part Number | MXD3636C3-19 |
Finish | Matte White |
Dimensions | W2.125″ X H3.5″ |
Maximum Dimensions | W7″ X H7″ |
Canopy Diameter | 7.0″ |
Wattage | 21 |
Delivered Lumens | 1800 |
Disclaimer: Delivered Lumens are based on calculations – Please contact factory for IES Files if required. | |
Dimmable | Yes |
Type of Dimmer | ELV |
Dimming Percentage | Check Lamp Specifications |
CRI | 90 |
LED Life | L85/50Khrs. |
Color Temperature | 3000 |
Color Temperature Options | 30K-35K-40K MOQ may apply |
LED Type | Module & Driver |
Location | Dry Rated |
Warranty | 1 Year Limited |
Certification | c-CSA-us or Equivalent |
Voltage | 120 |
