"MXL2248X-07-4-30K"
{"certification":"c-CSA-us or Equivalent","color_temp":"3000.0","color_temp_option":"27K-30K-35K-40K-50K MOQ may apply","cri":"90.0","delivered_lumens":"10742.0","dimming_percentage":"1%-100%","download1_name":"Download Instructions for MXL2248X-07-4-30K","download2_name":"0-10V Dimming Info","download2_url":"0-10v_dimming.pdf","family":"Firenze","finish":"Matte Black","glass":"White Acrylic","hasQuickShip":"false","height":"3.5","included_count":"1.0","included_desc":"120 Watt Integrated LED","lamping":"LED","led_life":"L85\/50Khrs.","led_type":"Module \u0026 Driver","length":"48.25","location":"Damp Rated","made_in_canada":"Yes","max_height":"41.0","max_length":"72.0","max_width":"2.0","optional_cri":"90","shade_material":"Metal","subcategory1":"Linear Up\/Down","suspension":"90\" Cord - 60\" Aircraft Cable","type_of_dimmer":"0-10V","variant_description":"3000K -0-10V Dimming, Adjustable Linear Pendant Up\/Down Dedicated LED , White Acrylic Lens in Black Finish, 6\" from End Mount with 1x18\", 1x12\" \u00261x6\" Threaded Rods (longer lengths by request), Aircraft Cable Suspension each end.","voltage":"120-277","warranty":"5 Year Limited","wattage":"120.0","width":"2.0","year":"2020.0"}
product.selected_or_first_available_variant.featured_image
files/mxl2248x-07-4-30k.jpg

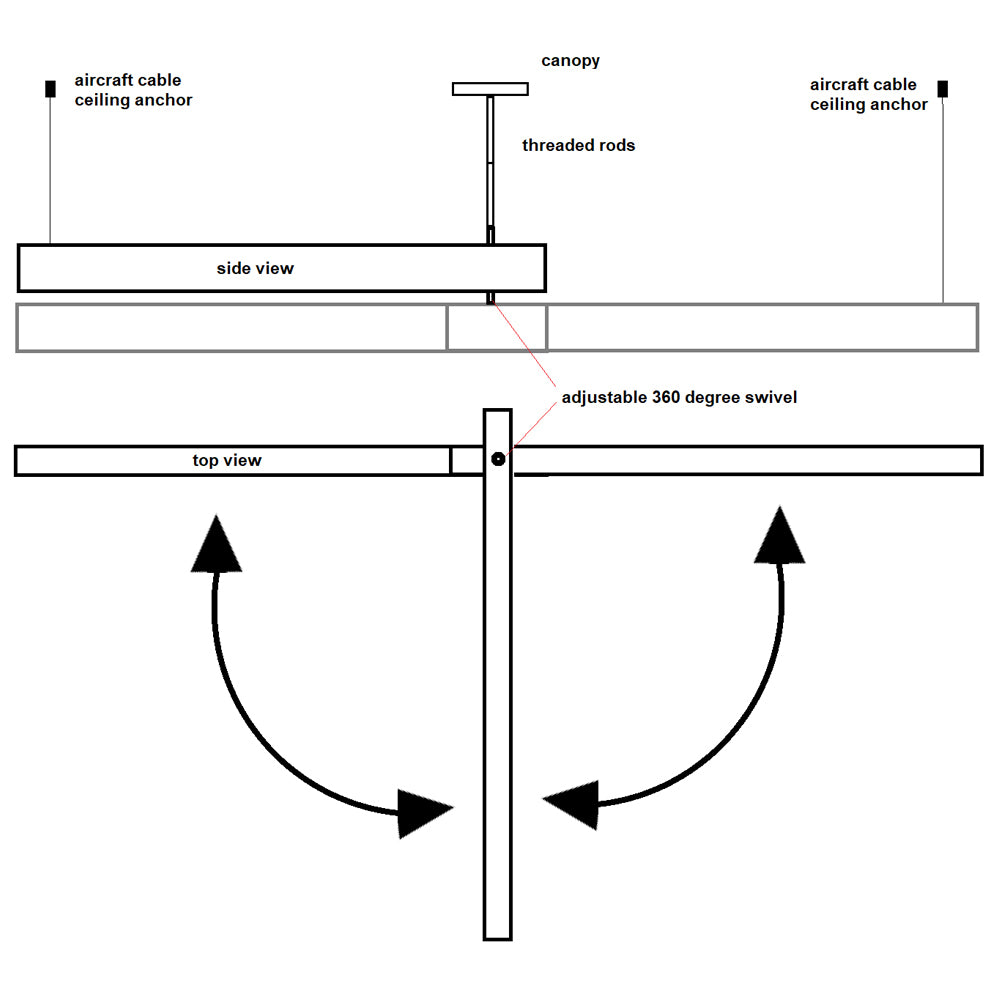

Firenze Stacked Pendant (0-10V Dimming)
Firenze Stacked Pendant (0-10V Dimming)
SKU:MXL2248X-07-4-30K
NOTE: Image may not reflect selected features.
Specifications
