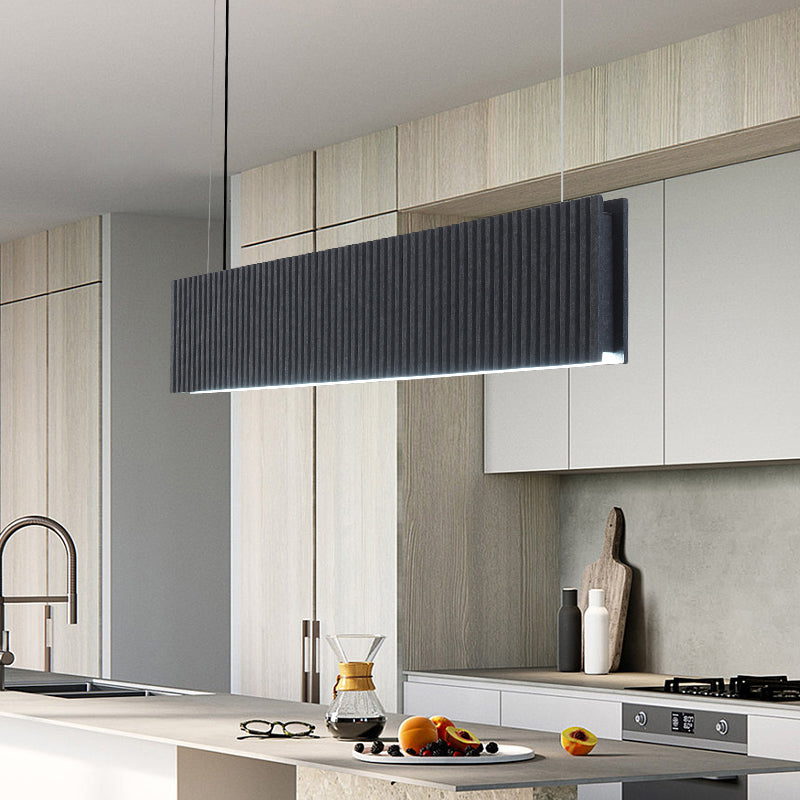

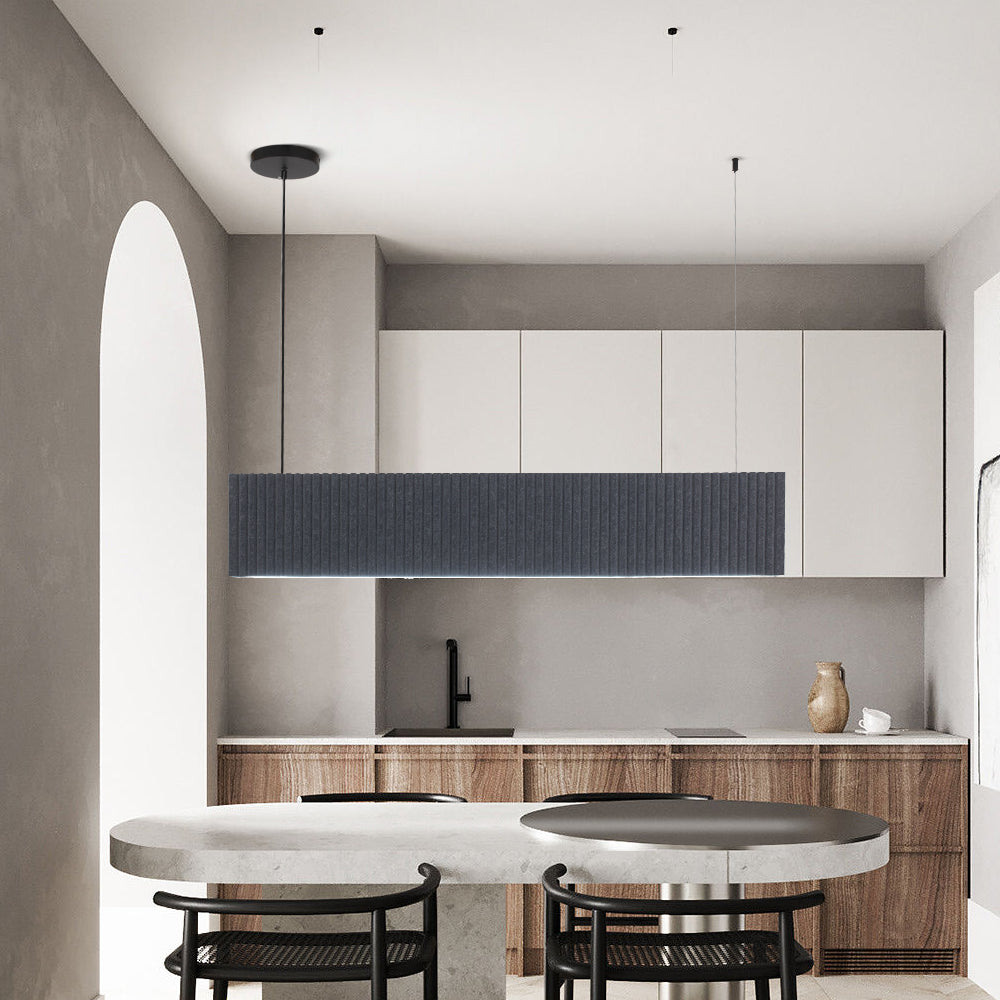

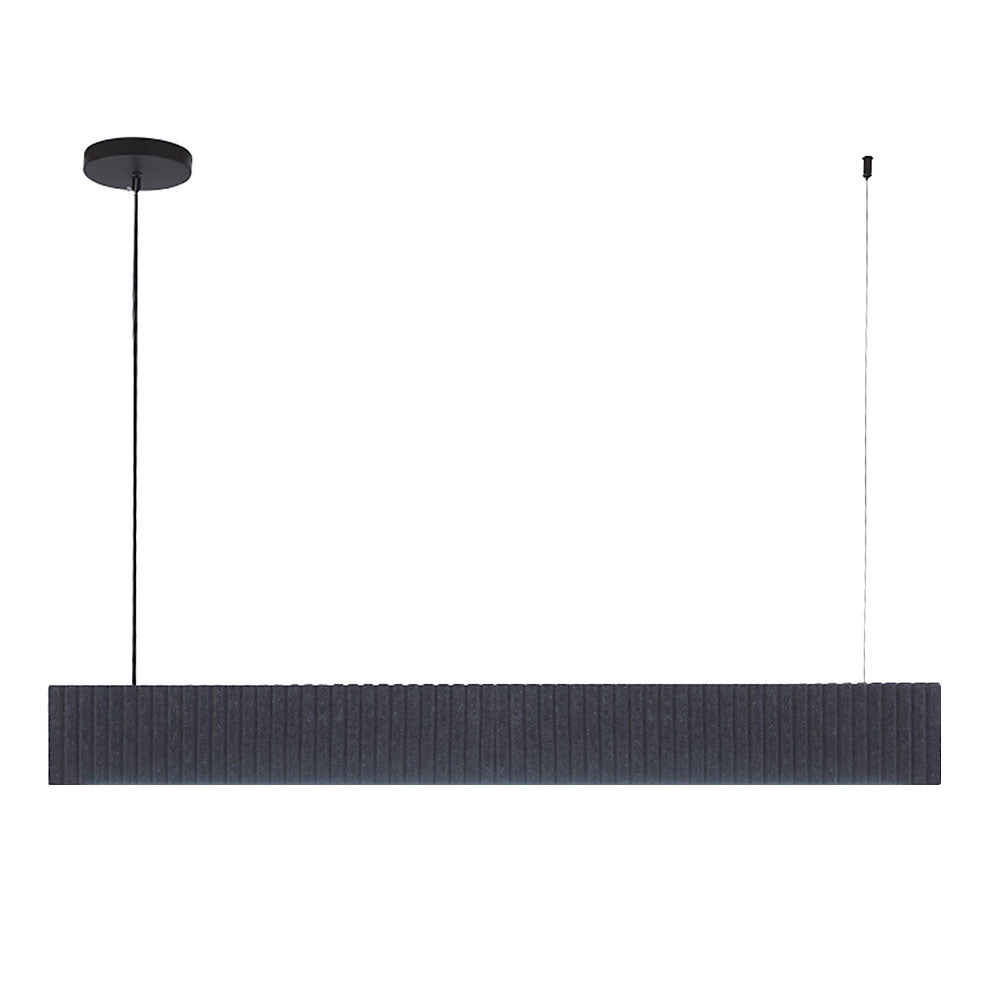

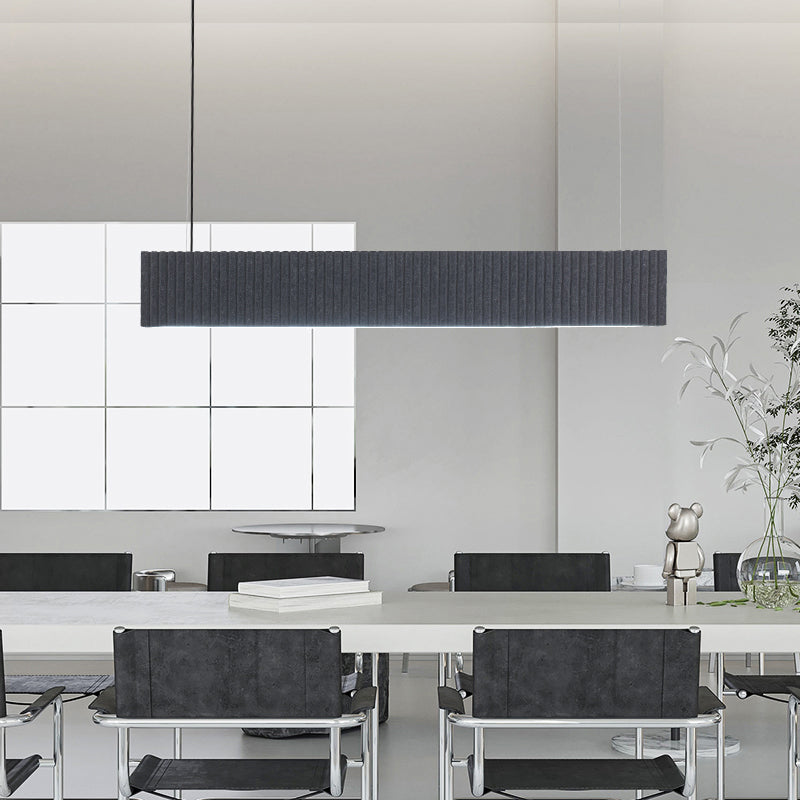

Amanda Down Pendant (0-10V Dimming)
Amanda Down Pendant (0-10V Dimming)
SKU:MXL243-UG27-2-30K
(Swatch image not available)
NOTE: Image may not reflect selected features.
Specifications
3000K, 0-10V Dimming, Down Light Linear Pendant Dedicated LED, White Acrylic Lens with Black/Gray Felt to improve the acoustics of your room.
| Part Number | MXL243-UG27-2-30K |
| Made in Canada | Yes |
| Finish | Matte Black |
| Shade | Black-Gray Felt |
| Lens | White Acrylic |
| Dimensions | W2.75″ X H4″ X L23.25″ |
| Maximum Dimensions | W2.75″ X H63″ X L23.25″ |
| Suspension | 90" Cord - 60" Aircraft Cable |
| Wattage | 12 |
| Delivered Lumens | 1039 |
| Disclaimer: Delivered Lumens are based on calculations – Please contact factory for IES Files if required. | |
| Dimmable | Yes |
| Type of Dimmer | 0-10V |
| Dimming Percentage | 0%-100% |
| CRI | 90 |
| LED Life | L85/50Khrs. |
| Color Temperature | 3000 |
| Color Temperature Options | 27K-30K-35K-40K-50K MOQ may apply |
| LED Type | Module & Driver |
| Location | Damp Rated |
| Warranty | 5 Year Limited |
| Bulbs Included | 1 X 12 Watt Integrated LED |
| Certification | c-CSA-us or Equivalent |
| Voltage | 120 |
| Optional voltage | 347 |
