SKU:MXL6020-XX 14W
NOTE : L 'image peut ne pas refléter les caractéristiques sélectionnées.
Spécifications

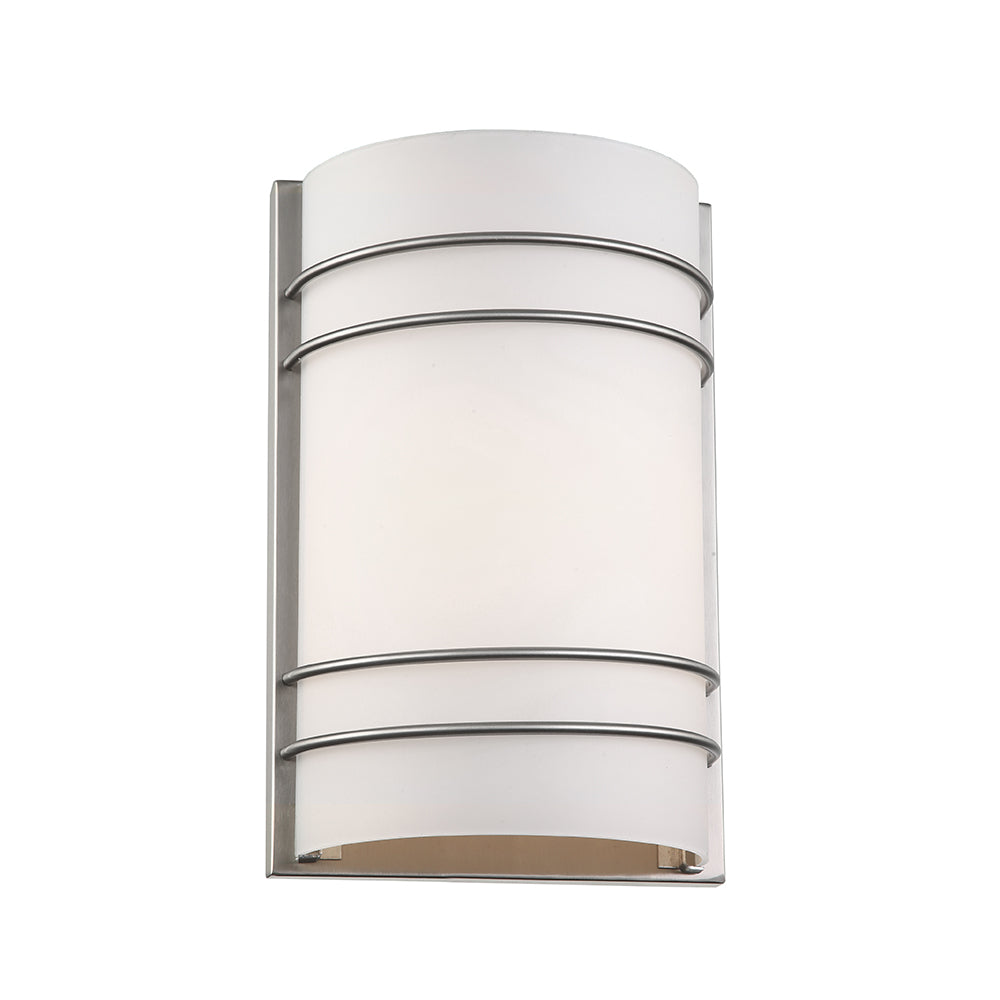

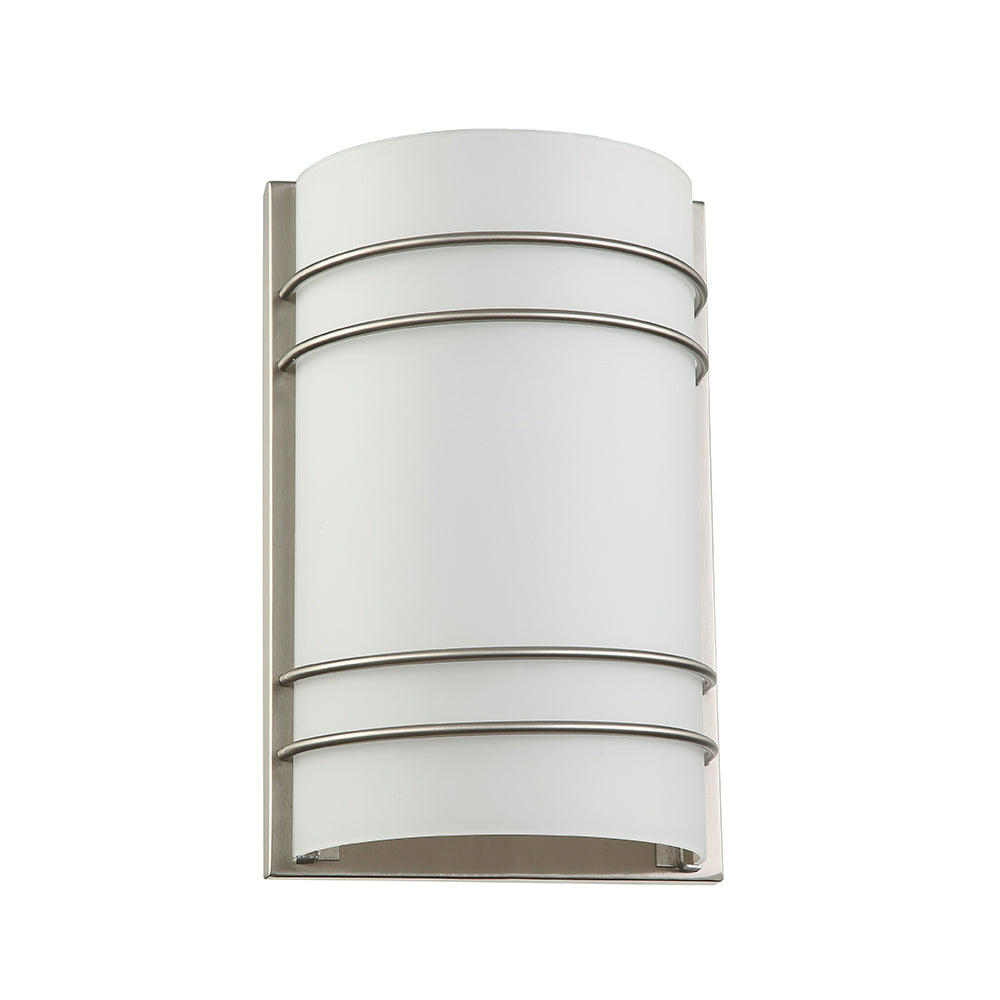

0-10V Dimming - Dedicated LED Wall Sconce with Satin White Glass in Custom Finish .
Part Number | MXL6020-XX 14W |
Made in Canada | Yes |
Finish | Custom Finish |
Lens | Frosted White |
Replacement Glass | 6020 G |
Dimensions | W8″ X H12.5″ X E4″ |
Maximum Dimensions | W8″ X H12.5″ X E4″ |
Wattage | 14 |
Delivered Lumens | 1518 |
Disclaimer: Delivered Lumens are based on calculations – Please contact factory for IES Files if required. | |
Dimmable | Yes |
Type of Dimmer | 0-10V |
Dimming Percentage | 0%-100% |
CRI | 90 |
LED Life | L85/50Khrs. |
Color Temperature | 3000 |
Color Temperature Options | 27K-30K-35K-40K-50K MOQ may apply |
LED Type | Module & Driver |
Location | Damp Rated |
Warranty | 5 Year Limited |
Bulbs Included | 1 X 14 Watt Integrated LED |
Certification | c-CSA-us or Equivalent |
Voltage | 120-277 |
Optional voltage | 347 |
