"MXL6312-07 14W"
{"certification":"c-CSA-us or Equivalent","color_temp":"3000.0","color_temp_option":"27K-30K-35K-40K-50K MOQ may apply","cri":"90.0","delivered_lumens":"1518.0","dimming_percentage":"5%-100%","download2_name":"0-10V Dimming Info","download2_url":"0-10v_dimming.pdf","extension":"4.0","finish":"Matte Black","glass":"Frosted White","hasQuickShip":"false","height":"12.0","included_count":"1.0","included_desc":"14 Watt Integrated LED","lamping":"LED","led_life":"L85\/50Khrs.","led_type":"Module \u0026 Driver","location":"Damp Rated","made_in_canada":"Yes","max_extension":"4.0","max_height":"12.0","max_width":"8.25","optional_cri":"90","optional_voltage":"347.0","replacement_glass":"6312 G","shade_material":"Glass","type_of_dimmer":"0-10V","variant_description":"0-10V Dimming - Dedicated LED Wall Sconce with Satin White Glass in Black Finish.","voltage":"120-277","warranty":"5 Year Limited","wattage":"14.0","width":"8.25","year":"2021.0"}
product.featured_image
files/mx_6312-40.jpg
Kinston
Kinston
SKU:MXL6312-07 14W
(Swatch image not available)
NOTE : L 'image peut ne pas refléter les caractéristiques sélectionnées.
Spécifications

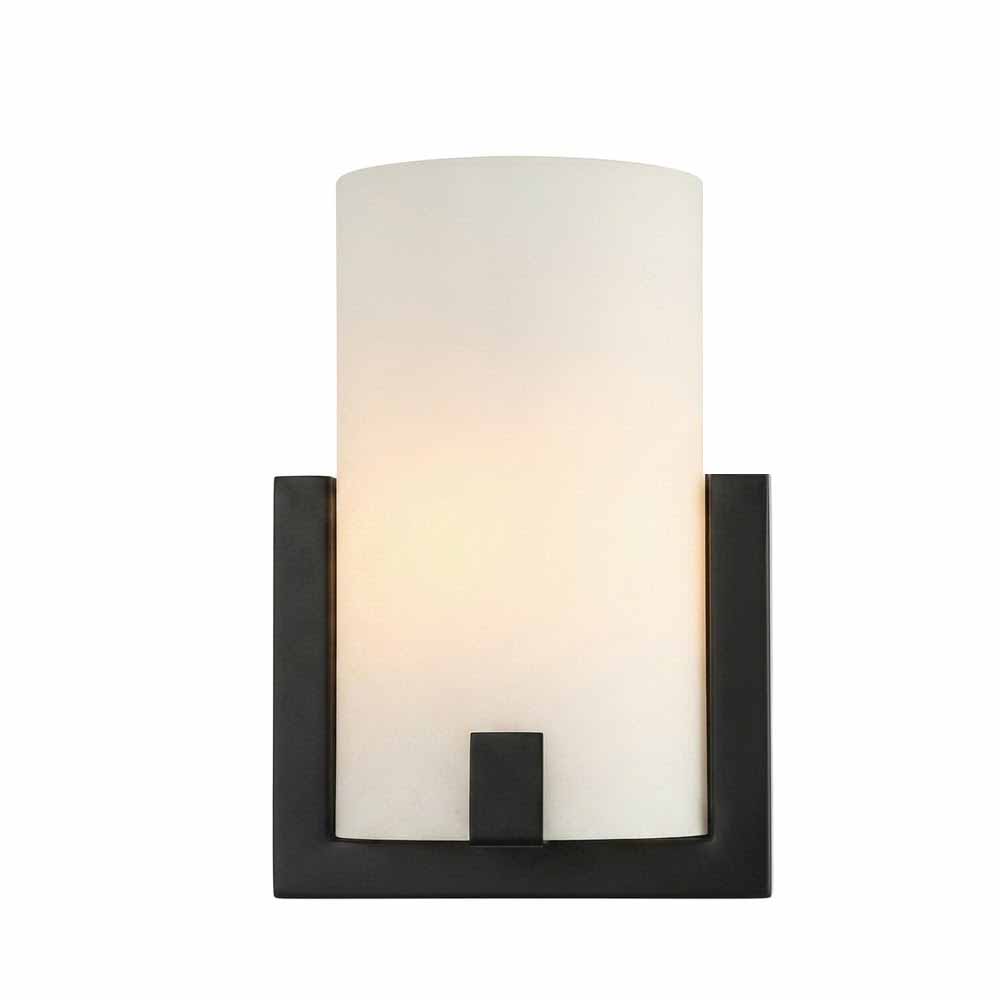

0-10V Dimming - Dedicated LED Wall Sconce with Satin White Glass in Black Finish.
| Part Number | MXL6312-07 14W |
| Made in Canada | Yes |
| Finish | Matte Black |
| Lens | Frosted White |
| Replacement Glass | 6312 G |
| Dimensions | W8.25″ X H12″ X E4″ |
| Maximum Dimensions | W8.25″ X H12″ X E4″ |
| Wattage | 14 |
| Delivered Lumens | 1518 |
| Disclaimer: Delivered Lumens are based on calculations – Please contact factory for IES Files if required. | |
| Dimmable | Yes |
| Type of Dimmer | 0-10V |
| Dimming Percentage | 5%-100% |
| CRI | 90 |
| LED Life | L85/50Khrs. |
| Color Temperature | 3000 |
| Color Temperature Options | 27K-30K-35K-40K-50K MOQ may apply |
| LED Type | Module & Driver |
| Location | Damp Rated |
| Warranty | 5 Year Limited |
| Bulbs Included | 1 X 14 Watt Integrated LED |
| Certification | c-CSA-us or Equivalent |
| Voltage | 120 |
| Optional voltage | 347 |
