Ecclesia
Ecclesia
SKU:MXLS5 104W
(Swatch image not available)
NOTE: Image may not reflect selected features.
Specifications

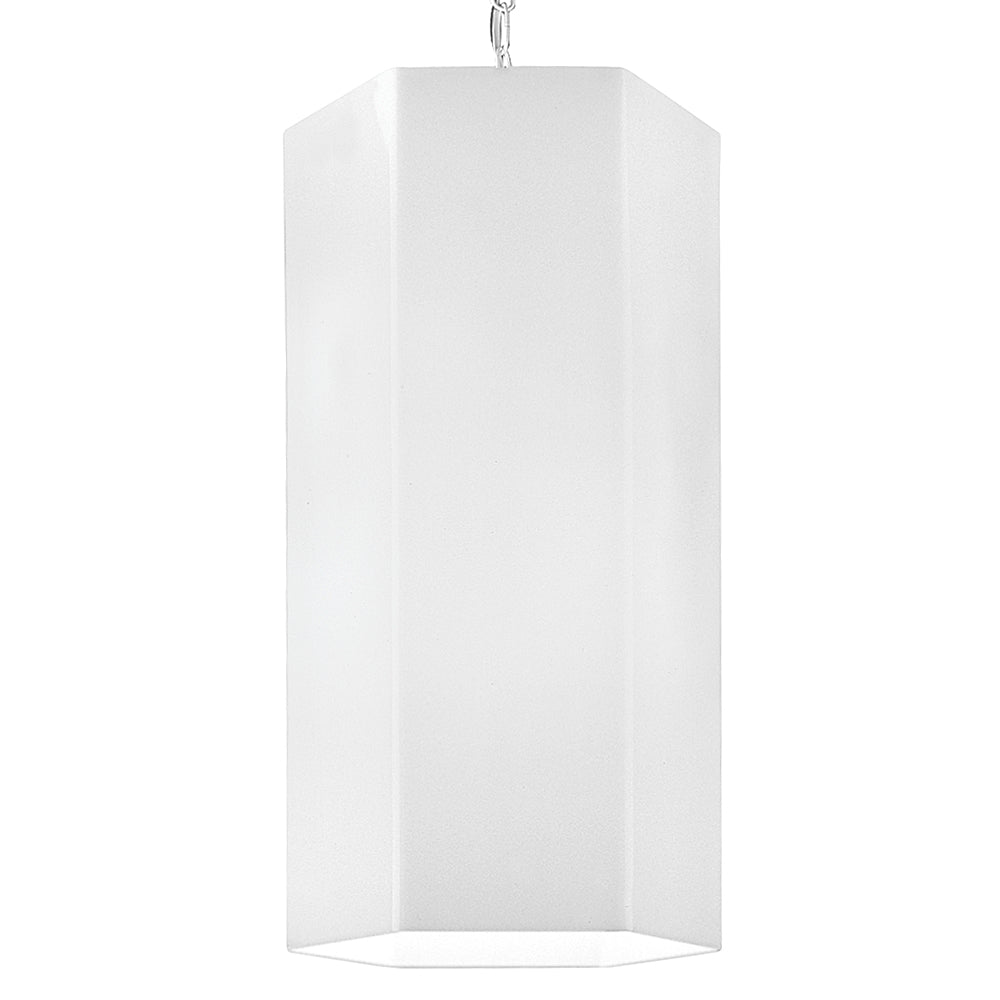

74W Side Lighting (6502 Delivered Lumens) 40W Down Lighting (3316 Delivered Lumens) Church Light Pendant White Acrylic Hexagon with 6' Chain & 8' Wire
| Part Number | MXLS5 104W |
| Made in Canada | Yes |
| Finish | Matte White |
| Lens | White Acrylic |
| Dimensions | W13″ X H24″ |
| Maximum Dimensions | W13″ X H96″ |
| Wattage | 104 |
| Delivered Lumens | 8728 |
| Disclaimer: Delivered Lumens are based on calculations – Please contact factory for IES Files if required. | |
| Dimmable | Yes |
| Type of Dimmer | 0-10V |
| Dimming Percentage | 5%-100% |
| CRI | 90 |
| LED Life | L85/50Khrs. |
| Color Temperature | 3000 |
| Color Temperature Options | 27K-30K-35K-40K-50K MOQ may apply |
| LED Type | Module & Driver |
| Location | Damp Rated |
| Warranty | 5 Year Limited |
| Bulbs Included | 1 X 104 Watt Integrated LED |
| Certification | c-CSA-us or Equivalent |
| Voltage | 120 |
| Optional voltage | 347 |
