"MXLS7 104W"
{"certification":"c-CSA-us or Equivalent","color_temp":"3000.0","color_temp_option":"27K-30K-35K-40K-50K MOQ may apply","cri":"90.0","delivered_lumens":"8728.0","dimming_percentage":"5%-100%","download1_name":"Download Instructions for MXLS7 104W","download2_name":"0-10V Dimming Info","download2_url":"0-10v_dimming.pdf","family":"Ecclesia","finish":"ORB","glass":"White Acrylic","hasQuickShip":"false","height":"24.0","included_count":"1.0","included_desc":"104 Watt Integrated LED","lamping":"LED","led_life":"L85\/50Khrs.","led_type":"Module \u0026 Driver","location":"Damp Rated","made_in_canada":"Yes","max_height":"96.0","max_width":"14.0","optional_cri":"90","optional_voltage":"347.0","shade_material":"Acrylic","type_of_dimmer":"0-10V","variant_description":"74W Side Lighting (6502 Delivered Lumens) 40W Down Lighting (3316 Delivered Lumens) Church Light Pendant White Acrylic\/Wood Trim \u0026 6' Chain \u0026 8' Wire","voltage":"120-277","warranty":"5 Year Limited","wattage":"104.0","width":"14.0","year":"2016.0"}
product.selected_or_first_available_variant.featured_image
files/mxls7_104w.jpg
Ecclesia
Ecclesia
SKU:MXLS7 104W
(Swatch image not available)
NOTE: Image may not reflect selected features.
Specifications

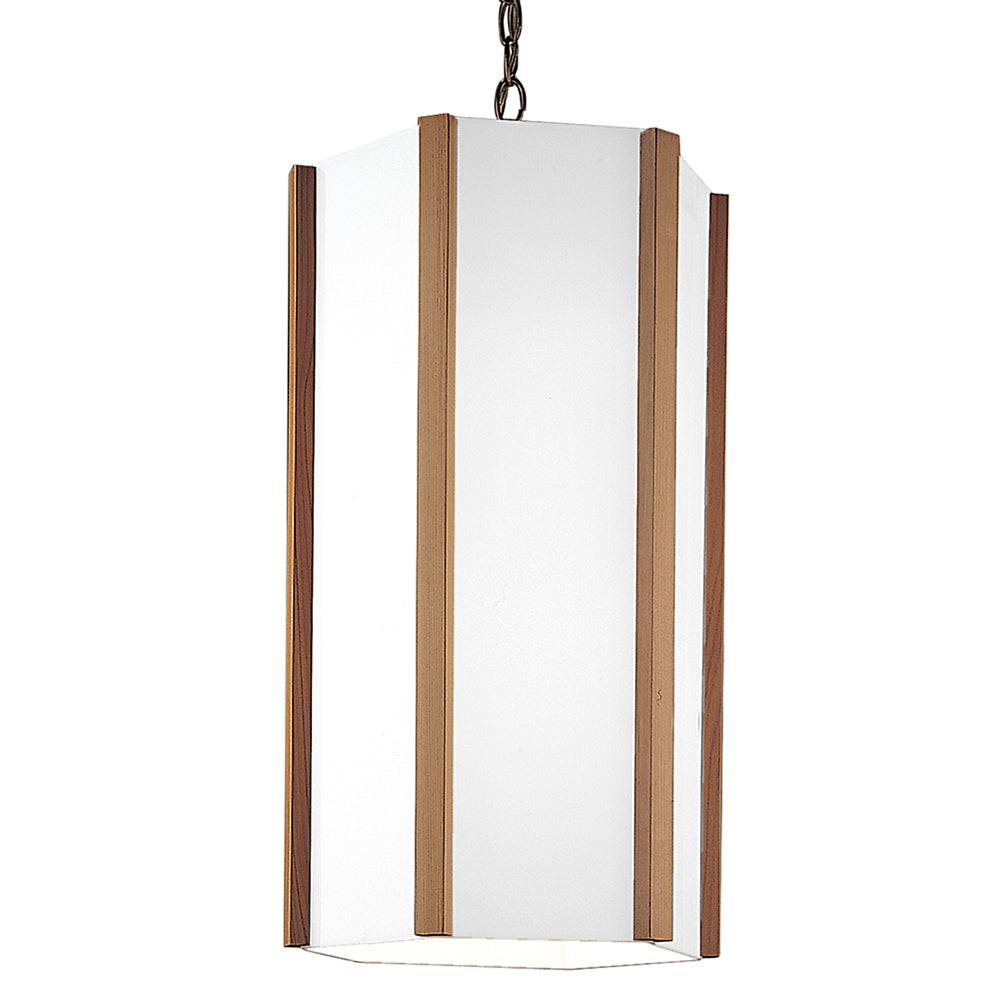

74W Side Lighting (6502 Delivered Lumens) 40W Down Lighting (3316 Delivered Lumens) Church Light Pendant White Acrylic/Wood Trim & 6' Chain & 8' Wire
| Part Number | MXLS7 104W |
| Made in Canada | Yes |
| Finish | ORB |
| Lens | White Acrylic |
| Dimensions | W14″ X H24″ |
| Maximum Dimensions | W14″ X H96″ |
| Wattage | 104 |
| Delivered Lumens | 8728 |
| Disclaimer: Delivered Lumens are based on calculations – Please contact factory for IES Files if required. | |
| Dimmable | Yes |
| Type of Dimmer | 0-10V |
| Dimming Percentage | 5%-100% |
| CRI | 90 |
| LED Life | L85/50Khrs. |
| Color Temperature | 3000 |
| Color Temperature Options | 27K-30K-35K-40K-50K MOQ may apply |
| LED Type | Module & Driver |
| Location | Damp Rated |
| Warranty | 5 Year Limited |
| Bulbs Included | 1 X 104 Watt Integrated LED |
| Certification | c-CSA-us or Equivalent |
| Voltage | 120 |
| Optional voltage | 347 |
