"MX 5000-5-30K"
{"certification":"c-CSA-us or Equivalent","color_temp":"3000.0","color_temp_option":"30K-35K-50K","cri":"90.0","delivered_lumens":"1400.0","dimming_percentage":"Check Driver Specifications","download1_name":"Download Instructions for MX 5000-5-30K","download1_url":"https:\/\/maxilitelighting.com\/instructions\/mx-5000-5-30k-instructions.pdf","hasQuickShip":"false","height_mm":"1.6","included_count":"1.0","included_desc":"14w\/m","lamping":"LED","led_life":"L50\/50Khrs.","length_mm":"5000.0","location":"Dry Rated","max_height_mm":"1.6","max_length_mm":"5000.0","max_width_mm":"10.0","type_of_dimmer":"Check Driver Specifications","variant_description":"3000K - 24V - 528 LED per Meter High Output COB Tape Light 4.26 Watts per foot (14W\/m) - Uniform illumination. Featuring a premium seamless line of light with no dotting. Cuttable every 45.5mm\/1.79\", solderless connectors for an easy installation. 10mm width, IP33 rated - Dry Indoor Applications - Max Length when Powered @ 1 end 5m - use a 96W Driver.","warranty":"3 Year Limited","wattage":"14.0","width_mm":"10.0","year":"2024.0"}
product.selected_or_first_available_variant.featured_image
files/mx_5000-5-30k_9241f2a8-6a0e-44ca-892b-a21a23509311.jpg

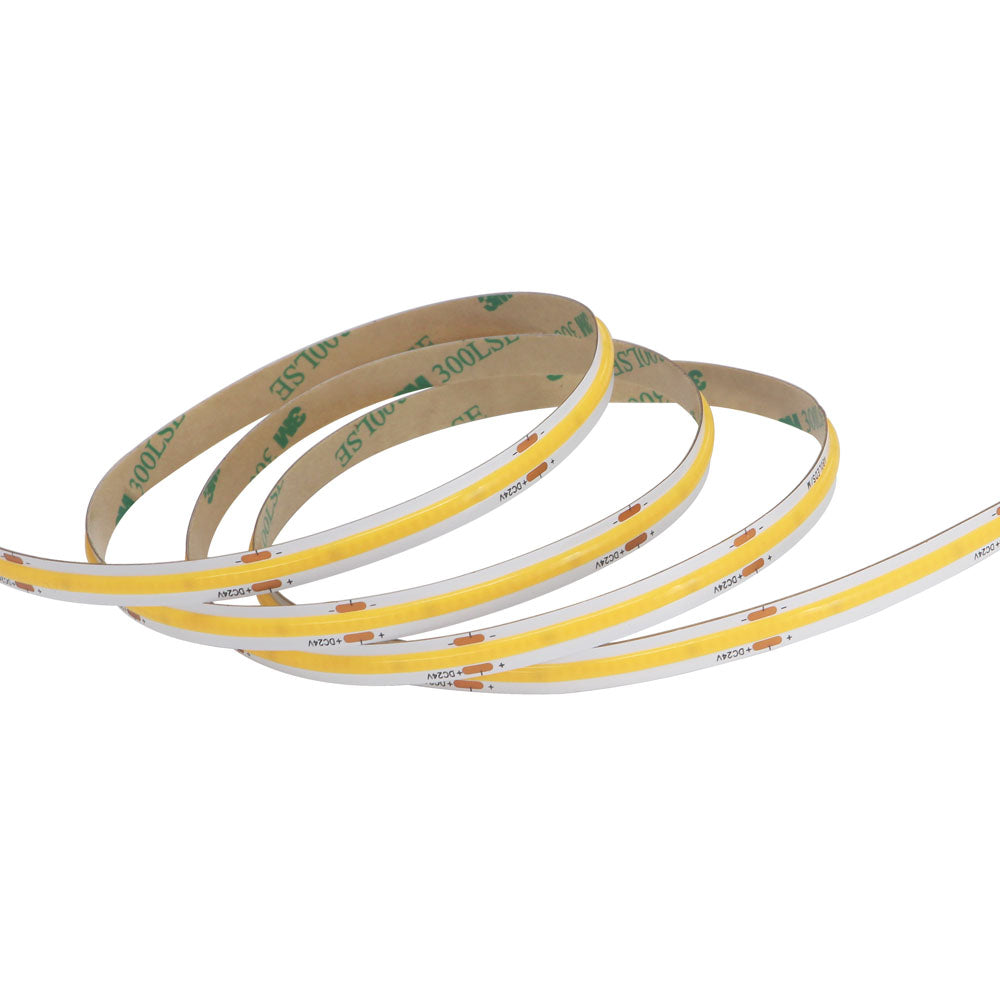

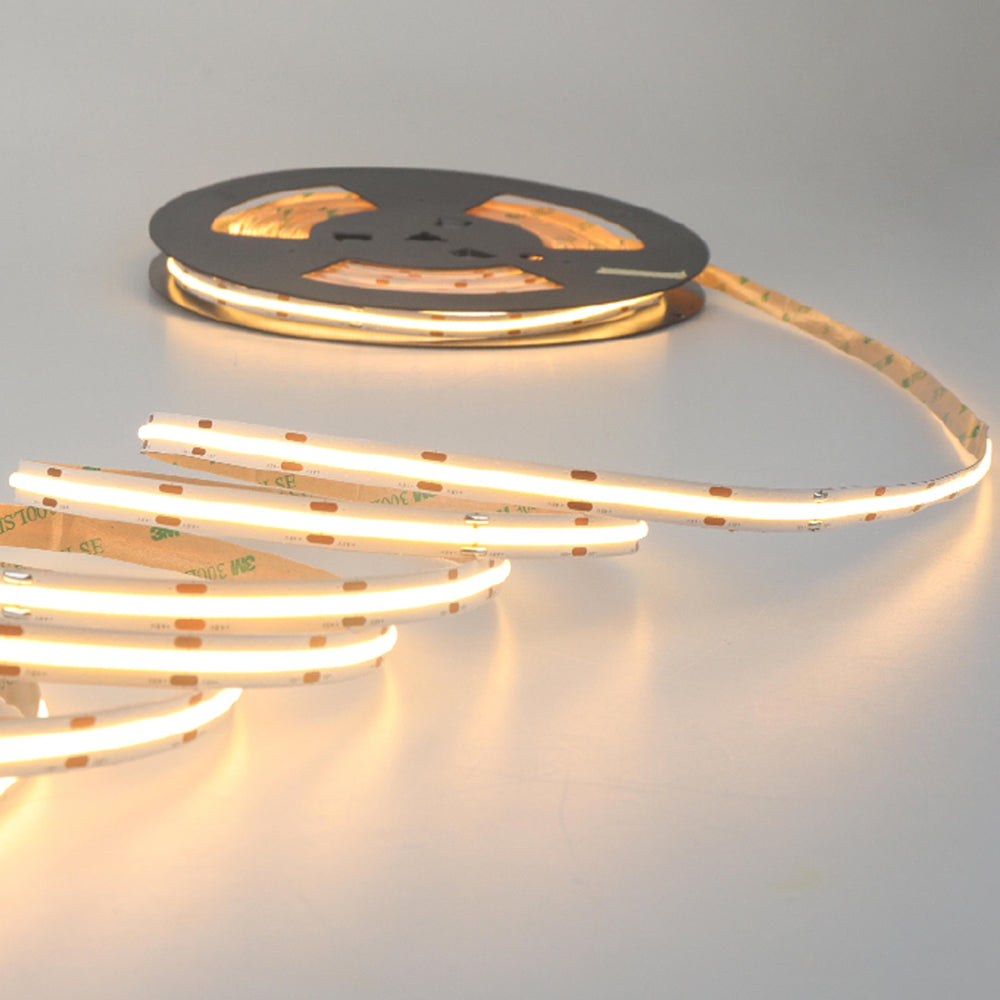

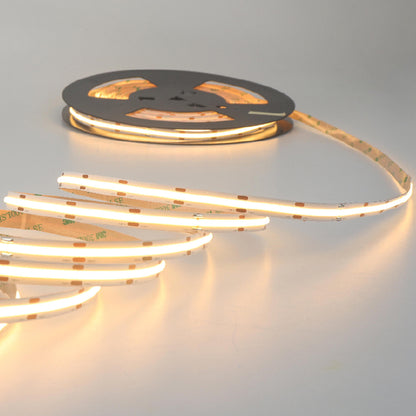

10mm High Output COB - LED
10mm High Output COB - LED
SKU:MX 5000-5-30K
NOTE: Image may not reflect selected features.
Specifications

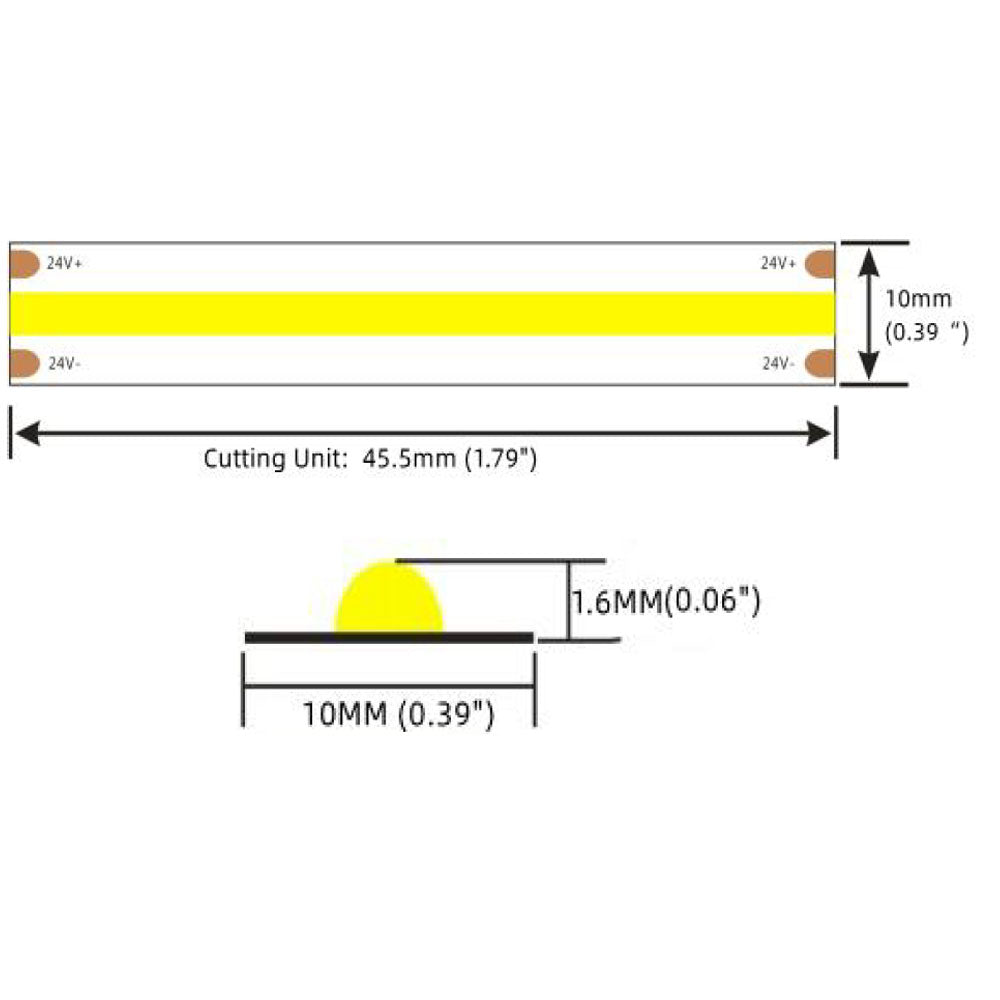

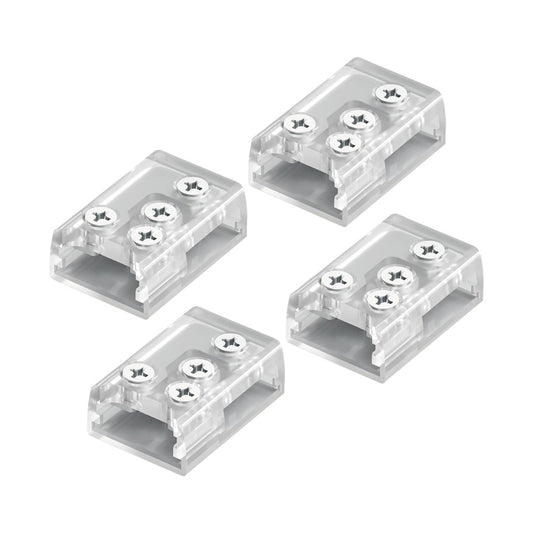

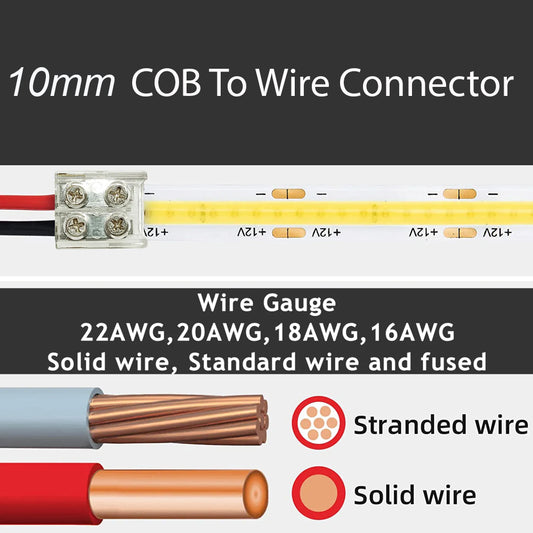

3000K - 24V - 528 LED per Meter High Output COB Tape Light 4.26 Watts per foot (14W/m) - Uniform illumination. Featuring a premium seamless line of light with no dotting. Cuttable every 45.5mm/1.79", solderless connectors for an easy installation. 10mm width, IP33 rated - Dry Indoor Applications - Max Length when Powered @ 1 end 5m - use a 96W Driver.
Part Number | MX 5000-5-30K |
Dimensions | W10mm X H1.6mm X L5000mm |
Maximum Dimensions | W10mm X H1.6mm X L5000mm |
Wattage | 14 |
Delivered Lumens | 1400 |
Dimmable | Yes |
Type of Dimmer | Check Driver Specifications |
Dimming Percentage | Check Driver Specifications |
CRI | 90 |
LED Life | L50/50Khrs. |
Color Temperature | 3000 |
Color Temperature Options | 30K-35K-50K |
Location | Dry Rated |
Warranty | 3 Year Limited |
Bulbs Included | 1 X 14w/m |
Certification | c-CSA-us or Equivalent |
