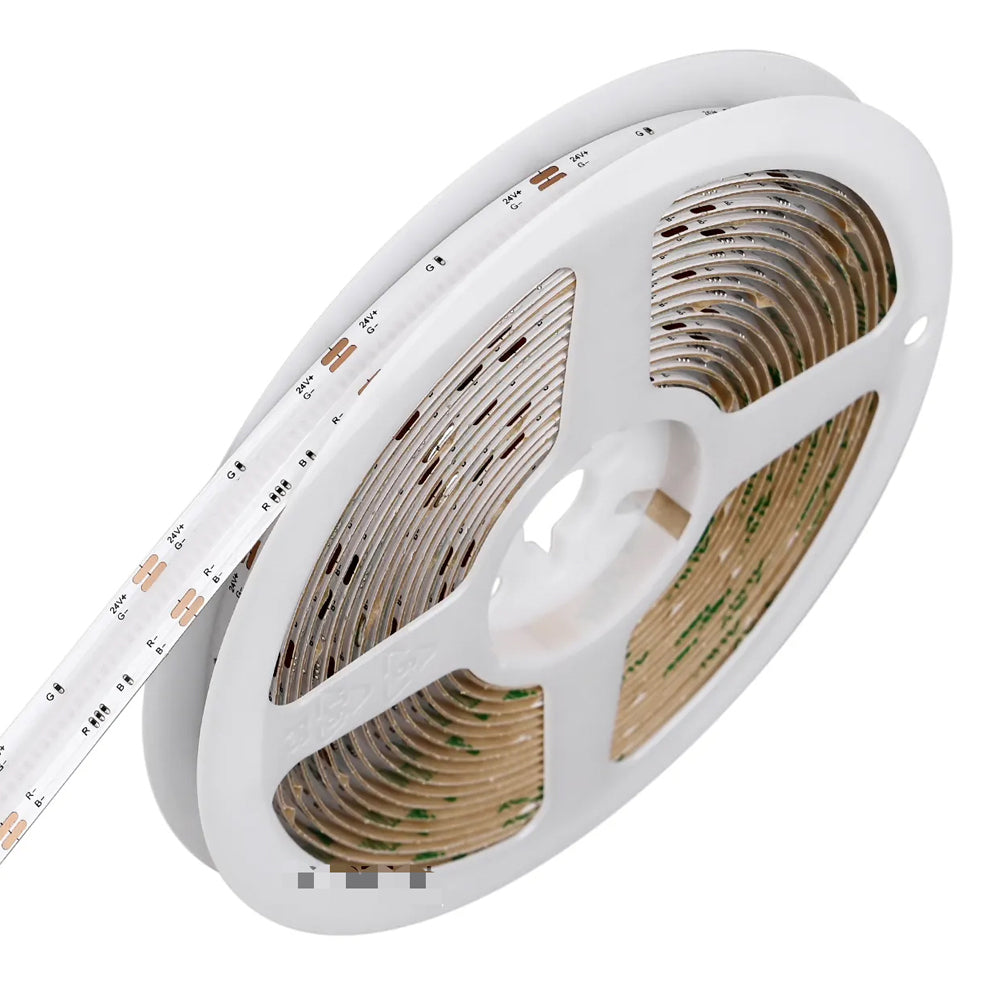

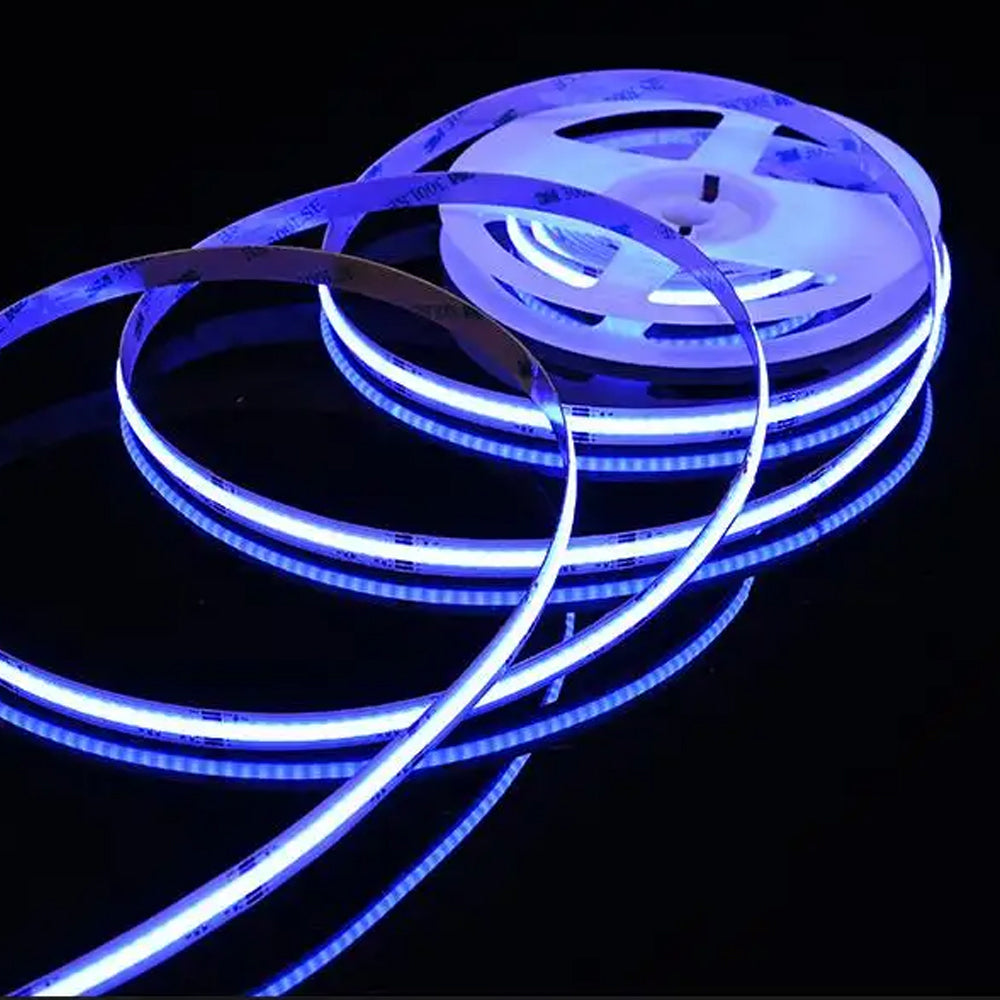

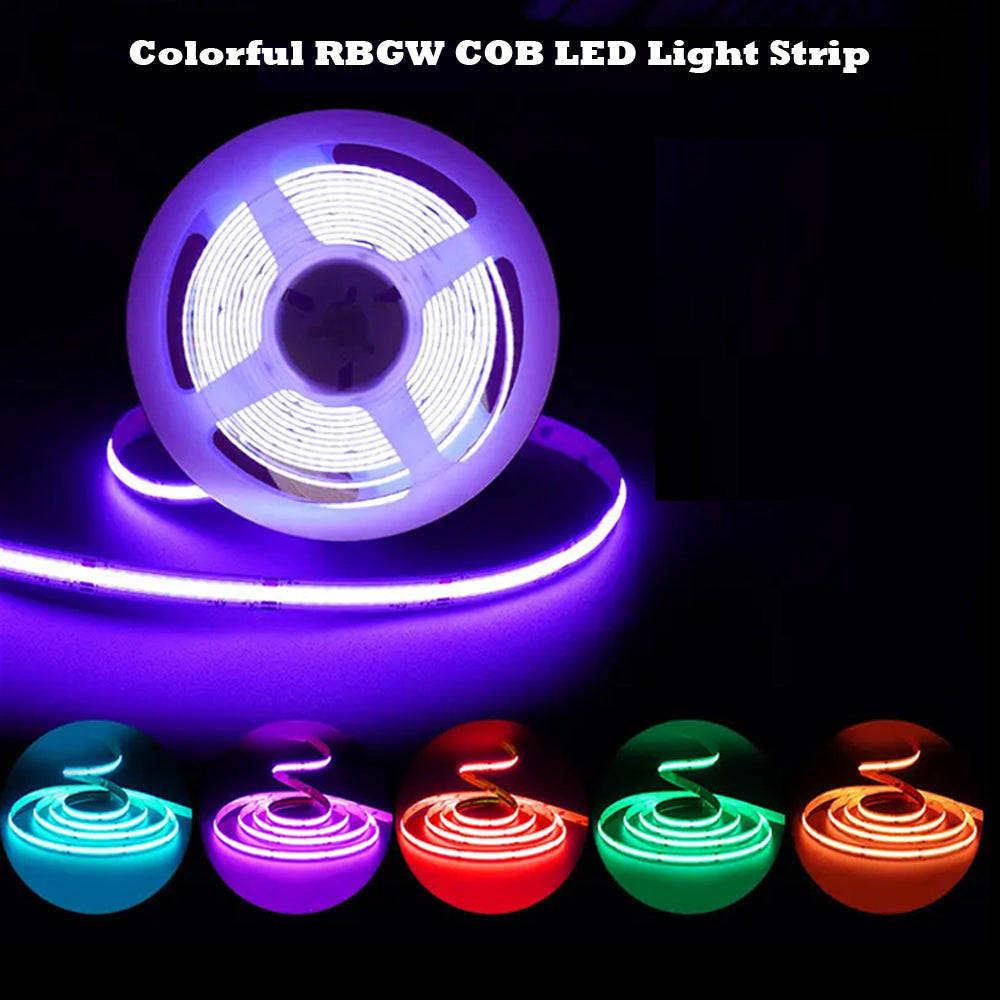

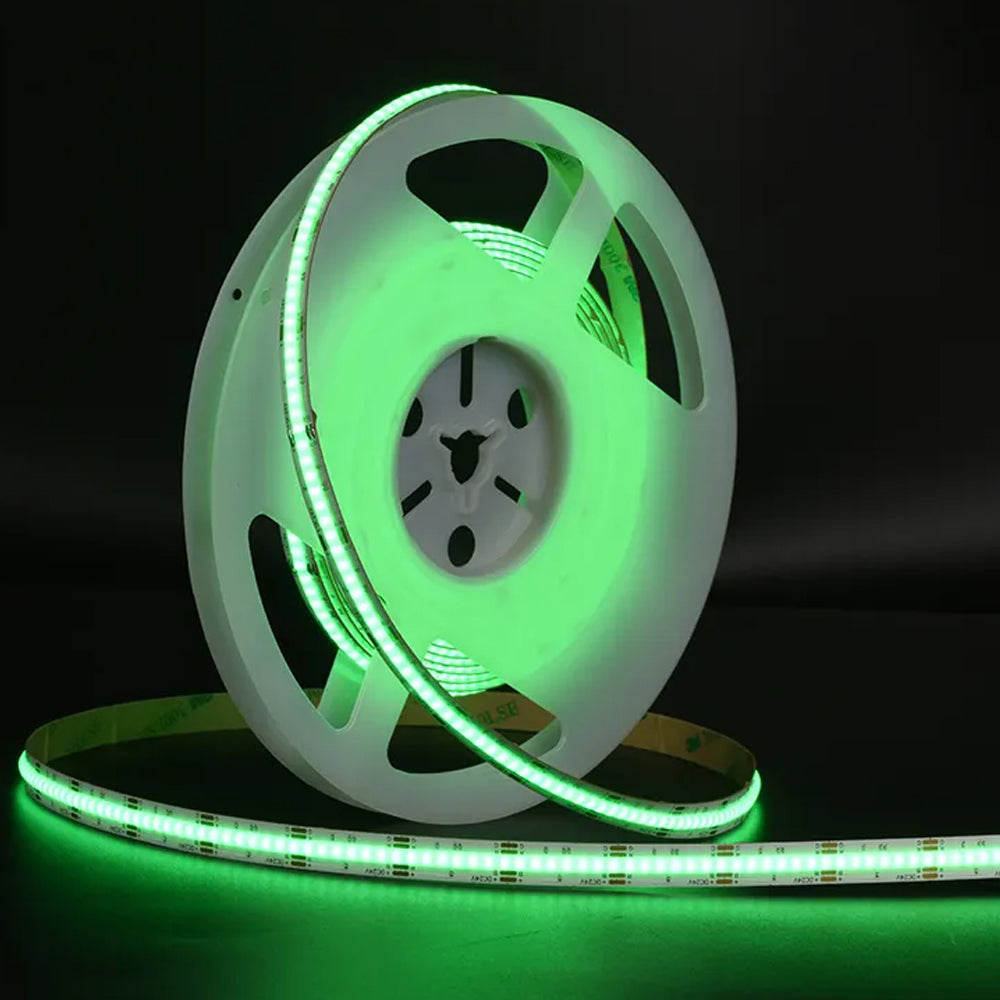

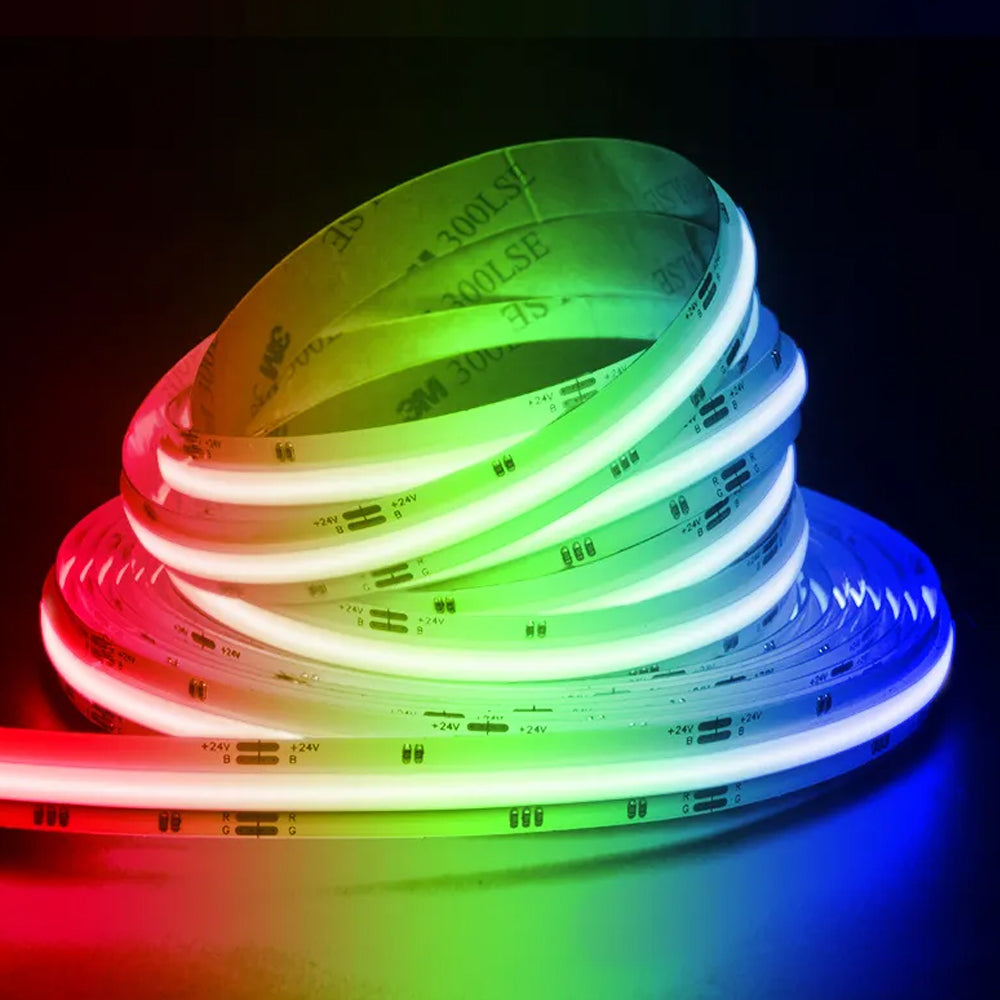

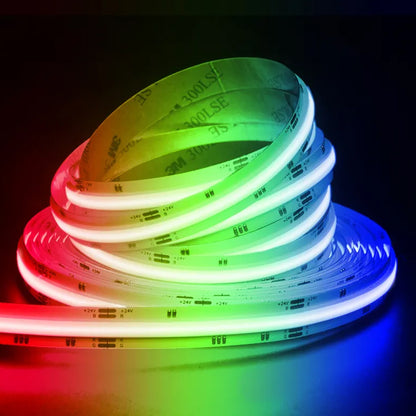

Wet Location - 12mm RGBW COB - LED
Wet Location - 12mm RGBW COB - LED
SKU:MX 5400-5
NOTE: Image may not reflect selected features.
Specifications

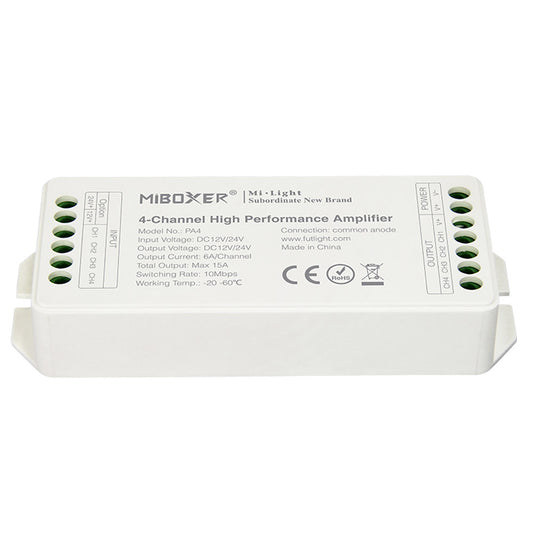

Wet Location - 5 Pin RGB - 24V - 896 LED per Meter High Output COB Tape Light 4.26 Watts per foot (14W/m) - Uniform illumination. Featuring a premium seamless line of light with no dotting. Cuttable every 50mm/1.97", 12mm width, IP67 rated - Wet Location - Max Length when Powered @ 1 end 5m - use a 75W Driver. For longer lengths use (MX 5300-AMP) amplifier & wire in Parallel or series. 5 meter roll has 200mm leads at both ends. Wet Location would not have any connectors available, if you cut the COB apply heat shrink & fill with silicone - once dry apply heat to the heat shrink for a tight seal.
Part Number | MX 5400-5 |
Dimensions | W10mm X H1.8mm X L5000mm |
Maximum Dimensions | W10mm X H1.8mm X L5000mm |
Wattage | 14 |
Delivered Lumens | 1400 |
Dimmable | Yes |
Type of Dimmer | Check Driver Specifications |
Dimming Percentage | Check Driver Specifications |
CRI | 90 |
LED Life | L50/50Khrs. |
Color Temperature | RGBW |
Location | Wet Rated |
Warranty | 3 Year Limited |
Bulbs Included | 1 X 14w/m |
Certification | c-CSA-us or Equivalent |
