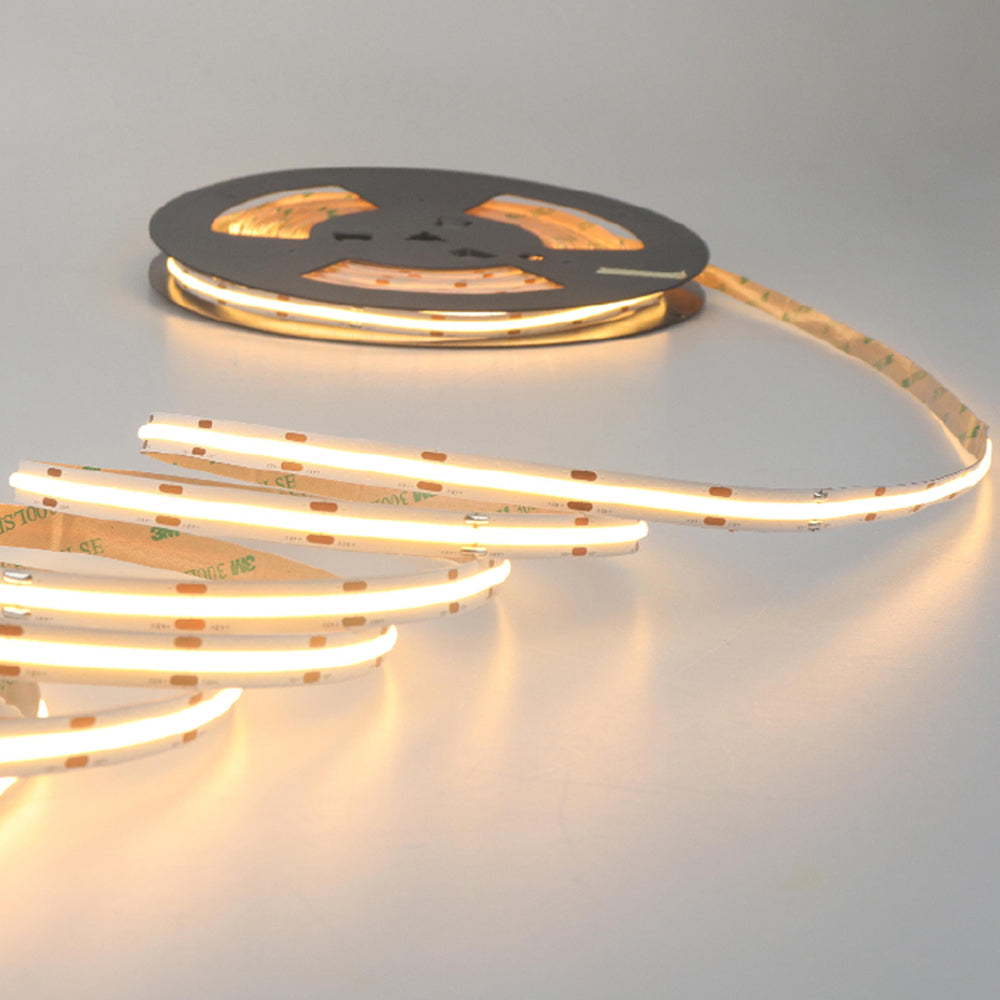

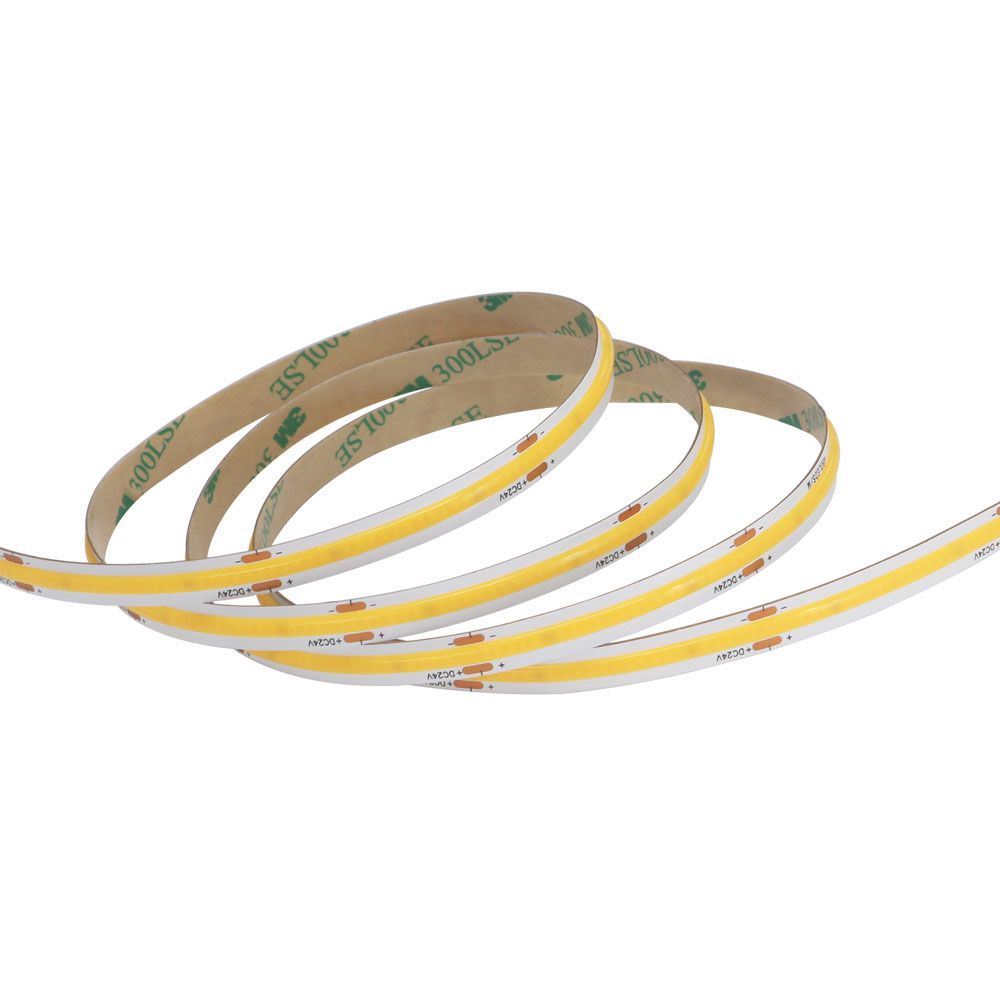

8mm Low Watts COB - LED
8mm Low Watts COB - LED
SKU:MX 5100-6-30K
NOTE: Image may not reflect selected features.
Specifications

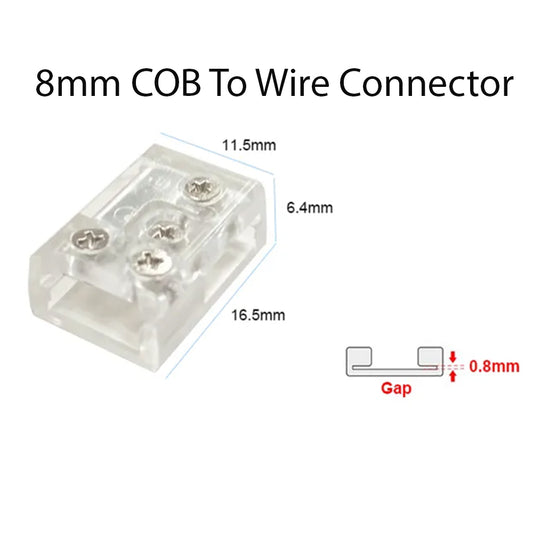

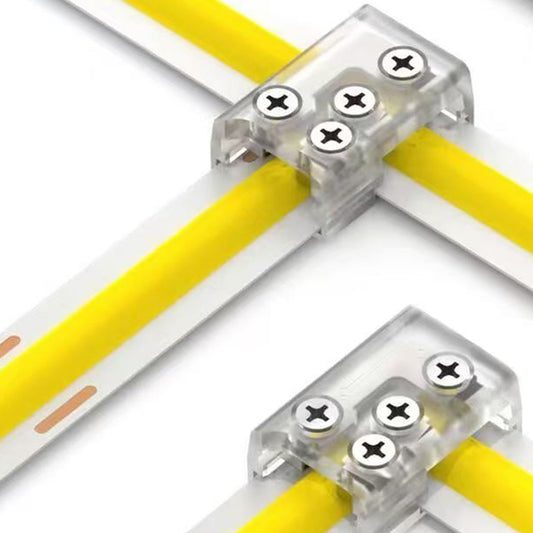

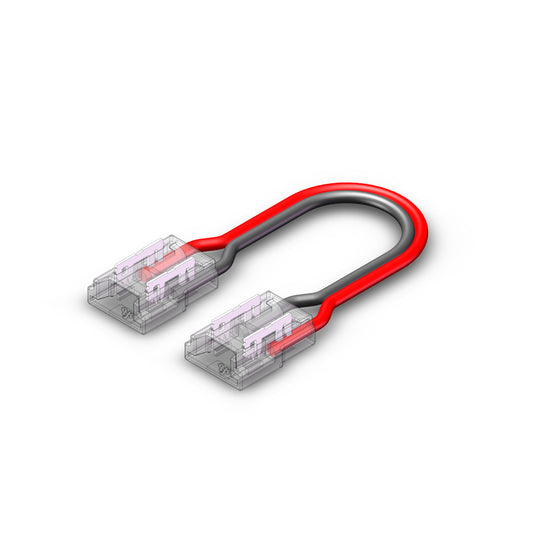

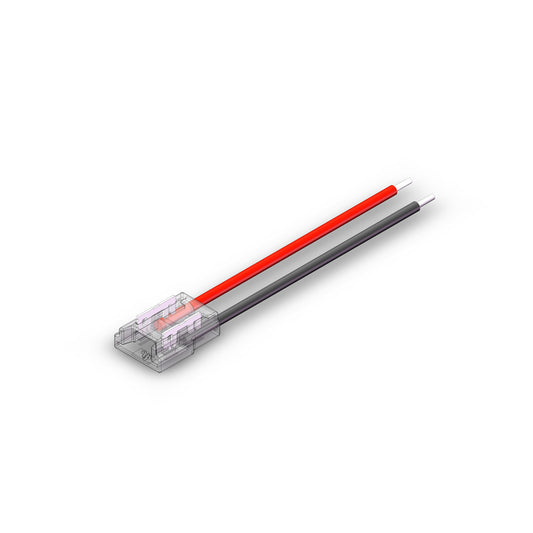

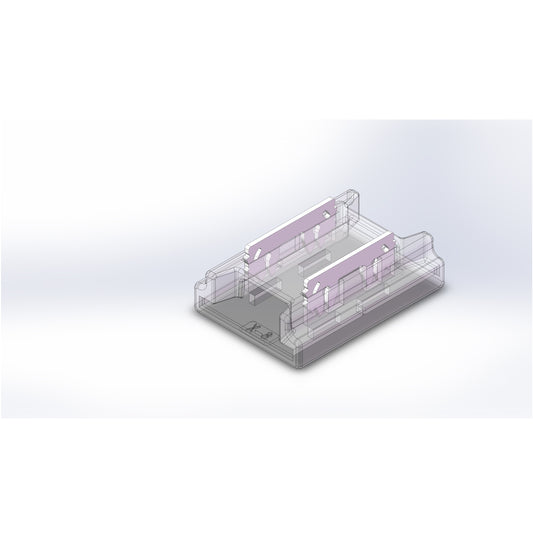

Dry Location - 3000K - 24V - 480 LED per Meter High Output COB Tape Light 1.25 Watts per foot (5w/m) - Uniform illumination. Featuring a premium seamless line of light with no dotting. Cuttable every 50mm/1.96", solderless connectors for an easy installation. 8mm width, IP33 rated - Dry Indoor Applications - 500-600 Lumens per meter - Max Length when Powered @ 1 end 15m - use a 96W Driver.
Part Number | MX 5100-6-30K |
Dimensions | W8mm X H1.6mm X L6000mm |
Maximum Dimensions | W8mm X H1.6mm X L6000mm |
Wattage | 5 |
Delivered Lumens | 500 |
Dimmable | Yes |
Type of Dimmer | Check Driver Specifications |
Dimming Percentage | Check Driver Specifications |
CRI | 90 |
LED Life | L50/50Khrs. |
Color Temperature | 3000 |
Color Temperature Options | 30K-35K-50K |
Location | Dry Rated |
Warranty | 3 Year Limited |
Bulbs Included | 1 X 5w/m |
Certification | c-CSA-us or Equivalent |
