SKU:MXD2237AC02-2-30K
(Swatch image not available)
NOTE: Image may not reflect selected features.
Specifications
3000K, ELV Dimming, Cylinder Linear Pendant Dedicated LED, White Acrylic Lens in White, Centre Mount with 60" adjustable cable.
| Part Number | MXD2237AC02-2-30K |
| Made in Canada | Yes |
| Finish | Matte White |
| Lens | White Acrylic |

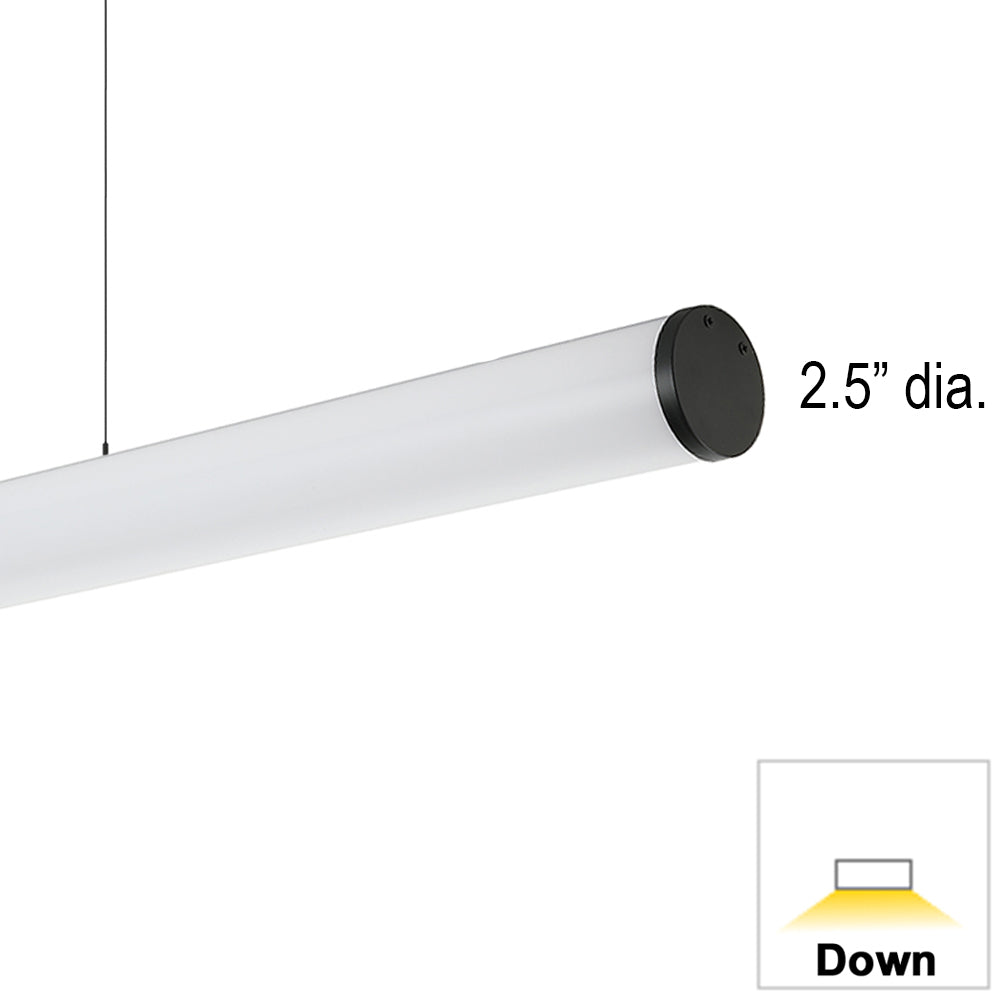

| Dimensions | W2.5″ X H2.5″ X L24.25″ |
| Maximum Dimensions | W2.5″ X H41″ X L24.25″ |
| Canopy Dimensions | W4.75″ X L14.0″ |
| Suspension | 60" Cable & Cord |
| Wattage | 15 |
| Delivered Lumens | 1611 |
| Disclaimer: Delivered Lumens are based on calculations – Please contact factory for IES Files if required. | |
| Dimmable | Yes |

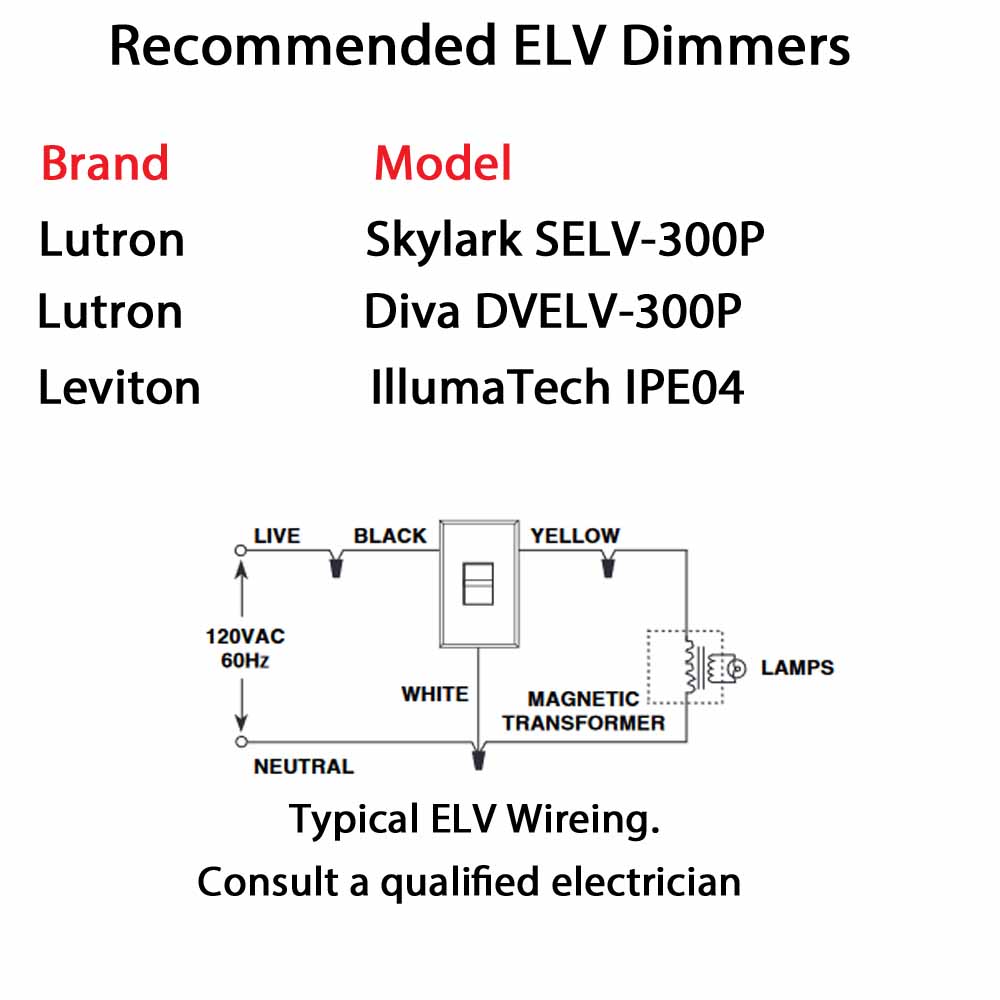

| Type of Dimmer | ELV |
| Dimming Percentage | 10%-100% |
| CRI | 90 |
| LED Life | L85/50Khrs. |
| Color Temperature | 3000 |
| Color Temperature Options | 27K-30K-35K-40K-50K MOQ may apply |
| LED Type | Module & Driver |
| Location | Damp Rated |
| Warranty | 5 Year Limited |
| Bulbs Included | 1 X 15 Watt Integrated LED |
| Certification | c-CSA-us or Equivalent |
| Voltage | 120 |
