"MXL2237R02-2-30K"
{"certification":"c-CSA-us or Equivalent","color_temp":"3000.0","color_temp_option":"27K-30K-35K-40K-50K MOQ may apply","cri":"90.0","delivered_lumens":"1611.0","dimming_percentage":"0%-100%","download1_name":"Download Instructions for MXL2237R02-2-30K","download2_name":"0-10V Dimming Info","download2_url":"0-10v_dimming.pdf","family":"Tuya","finish":"Matte White","glass":"White Acrylic","hasQuickShip":"false","height":"2.5","included_count":"1.0","included_desc":"15 Watt Integrated LED","lamping":"LED","led_life":"L85\/50Khrs.","led_type":"Module \u0026 Driver","length":"24.25","location":"Damp Rated","made_in_canada":"Yes","max_height":"41.0","max_length":"24.25","max_width":"2.5","optional_cri":"90","optional_voltage":"347.0","shade_material":"Acrylic","subcategory1":"Linear Down","suspension":"2x12\" \u0026 2x6\" Threaded Rods","type_of_dimmer":"0-10V","variant_description":"3000K, 0-10V Dimming, Cylinder Linear Pendant Dedicated LED, White Acrylic Lens in White, Centre Mount with 2x12\" \u0026 2x6\" Threaded Rods.","voltage":"120-277","warranty":"5 Year Limited","wattage":"15.0","width":"2.5","year":"2020.0"}
product.featured_image
files/mxl2237r07-4-30k.jpg
Tuya (0-10V Dimming)
Tuya (0-10V Dimming)
SKU:MXL2237R02-2-30K
(Swatch image not available)
NOTE: Image may not reflect selected features.
Specifications
3000K, 0-10V Dimming, Cylinder Linear Pendant Dedicated LED, White Acrylic Lens in White, Centre Mount with 2x12" & 2x6" Threaded Rods.
| Part Number | MXL2237R02-2-30K |
| Made in Canada | Yes |
| Finish | Matte White |
| Lens | White Acrylic |

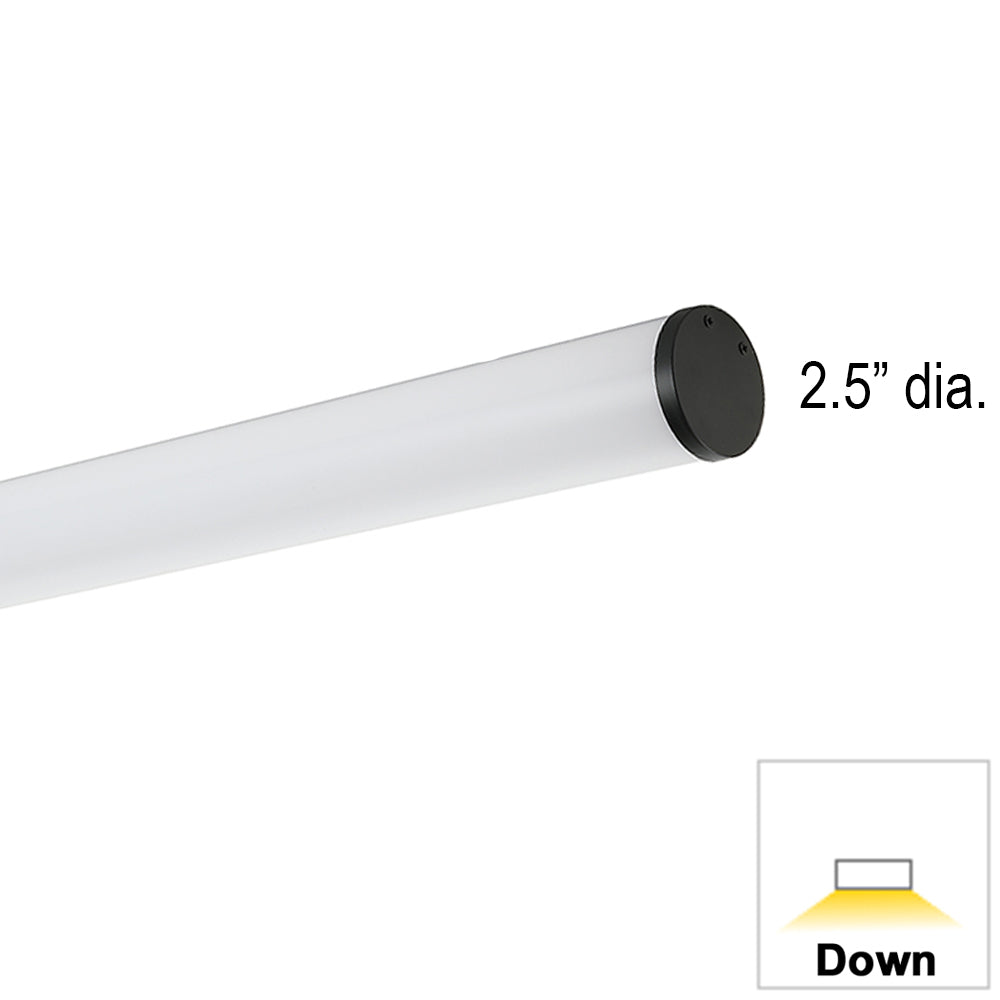

| Dimensions | W2.5″ X H2.5″ X L24.25″ |
| Maximum Dimensions | W2.5″ X H41″ X L24.25″ |
| Suspension | 2x12" & 2x6" Threaded Rods |
| Wattage | 15 |
| Delivered Lumens | 1611 |
| Disclaimer: Delivered Lumens are based on calculations – Please contact factory for IES Files if required. | |
| Dimmable | Yes |

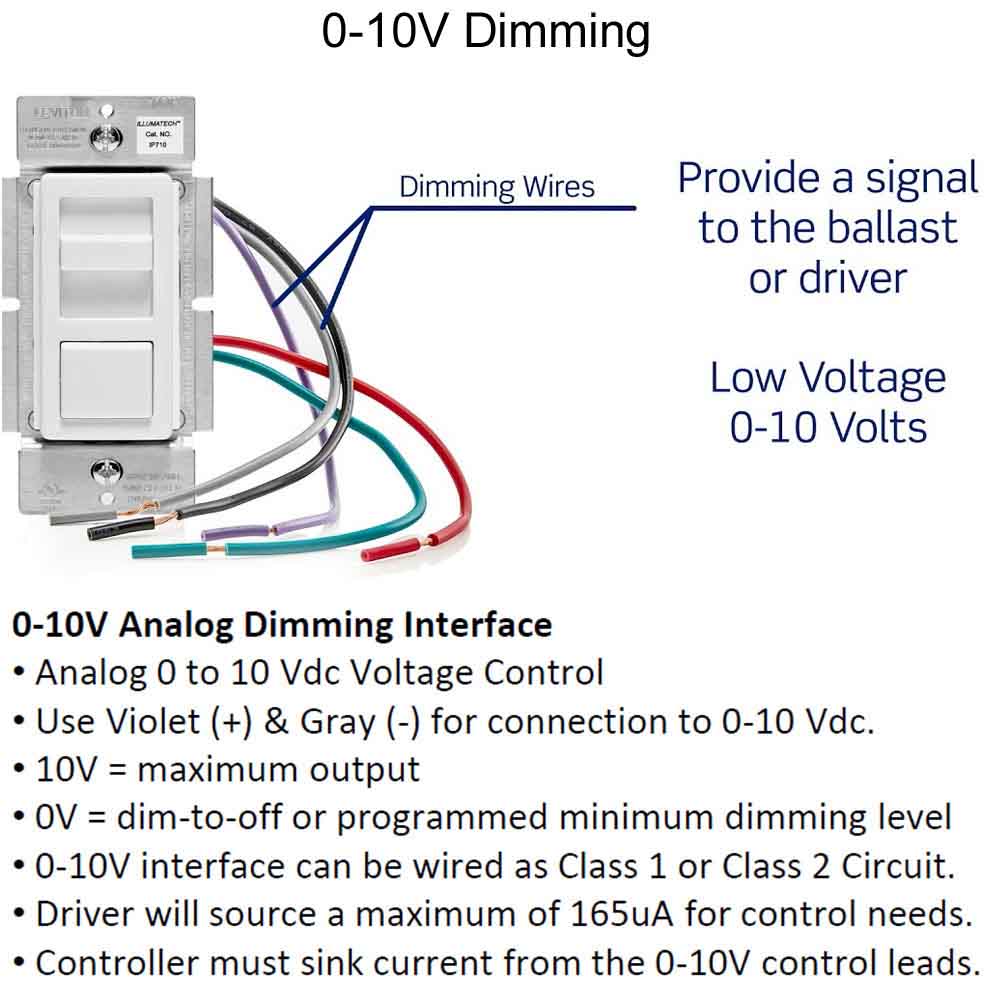

| Type of Dimmer | 0-10V |
| Dimming Percentage | 0%-100% |
| CRI | 90 |
| LED Life | L85/50Khrs. |
| Color Temperature | 3000 |
| Color Temperature Options | 27K-30K-35K-40K-50K MOQ may apply |
| LED Type | Module & Driver |
| Location | Damp Rated |
| Warranty | 5 Year Limited |
| Bulbs Included | 1 X 15 Watt Integrated LED |
| Certification | c-CSA-us or Equivalent |
| Voltage | 120 |
| Optional voltage | 347 |
