Specifications

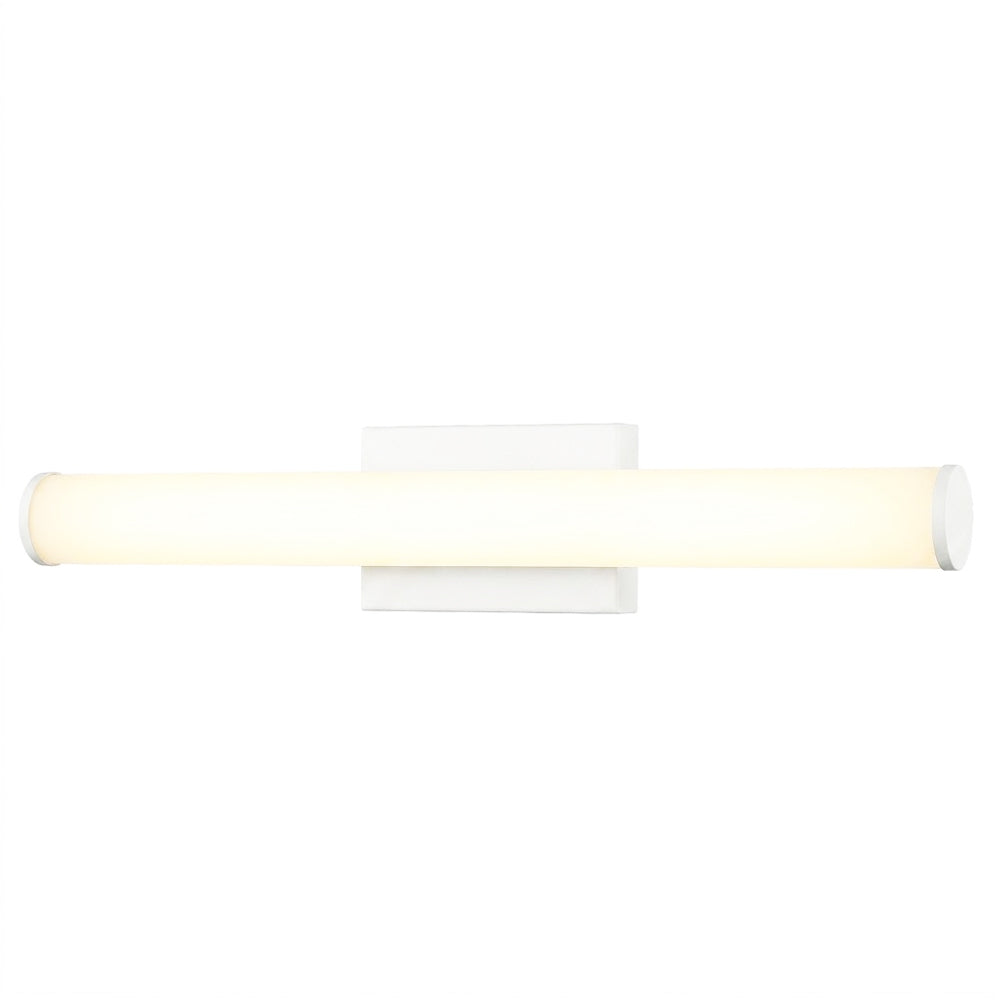

3000K, ELV Dimming, Cylinder Linear Direct Wall Mount Dedicated LED, White Acrylic Lens in White, Horizontal Mount
| Part Number | MXD6670-02-2-30K |
| Made in Canada | Yes |
| Finish | Matte White |
| Lens | White Acrylic |
| Dimensions | H2.375″ X L24.25″ X E3.75″ |
| Maximum Dimensions | H5″ X L24.25″ X E3.75″ |
| Wattage | 13 |
| Delivered Lumens | 1767 |
| Disclaimer: Delivered Lumens are based on calculations – Please contact factory for IES Files if required. | |
| Dimmable | Yes |

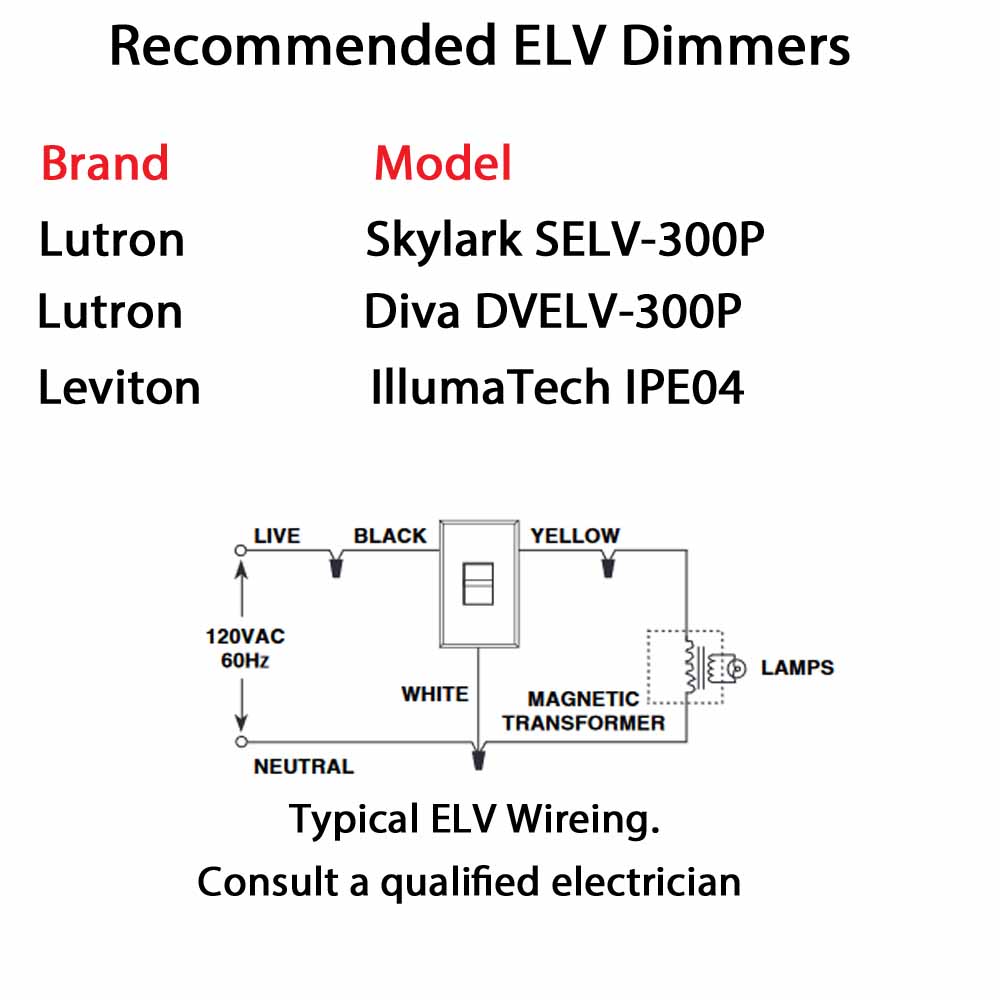

| Type of Dimmer | ELV |
| Dimming Percentage | 10%-100% |
| CRI | 90 |
| LED Life | L85/50Khrs. |
| Color Temperature | 3000 |
| Color Temperature Options | 27K-30K-35K-40K-50K MOQ may apply |
| LED Type | Module & Driver |
| Location | Damp Rated |
| Warranty | 5 Year Limited |
| Bulbs Included | 1 X 13 Watt Integrated LED |
| Certification | c-CSA-us or Equivalent |
| Voltage | 120 |
