"MXL6671-02-1-30K"
{"certification":"c-CSA-us or Equivalent","color_temp":"3000.0","color_temp_option":"27K-30K-35K-40K-50K MOQ may apply","cri":"90.0","delivered_lumens":"850.0","dimming_percentage":"0%-100%","download1_name":"Download Instructions for MXL6671-02-1-30K","download2_name":"0-10V Dimming Info","download2_url":"0-10v_dimming.pdf","extension":"3.75","family":"Tuya","finish":"Matte White","glass":"White Acrylic","hasQuickShip":"false","height":"12.25","included_count":"1.0","included_desc":"10 Watt Integrated LED","lamping":"LED","led_life":"L85\/50Khrs.","led_type":"Module \u0026 Driver","location":"Damp Rated","made_in_canada":"Yes","max_extension":"3.75","max_height":"12.25","max_width":"5.0","optional_cri":"90","optional_voltage":"347.0","shade_material":"Acrylic","type_of_dimmer":"0-10V","variant_description":"3000K, 0-10V Dimming, Cylinder Linear Direct Wall Mount Dedicated LED, White Acrylic Lens in White, Vertical Mount","voltage":"120-277","warranty":"5 Year Limited","wattage":"10.0","width":"2.375","year":"2021.0"}
product.featured_image
files/mxl6671-02-2-30k.jpg
Vertical Tuya (0-10V Dimming)
Vertical Tuya (0-10V Dimming)
SKU:MXL6671-02-1-30K
(Swatch image not available)
NOTE: Image may not reflect selected features.
Specifications

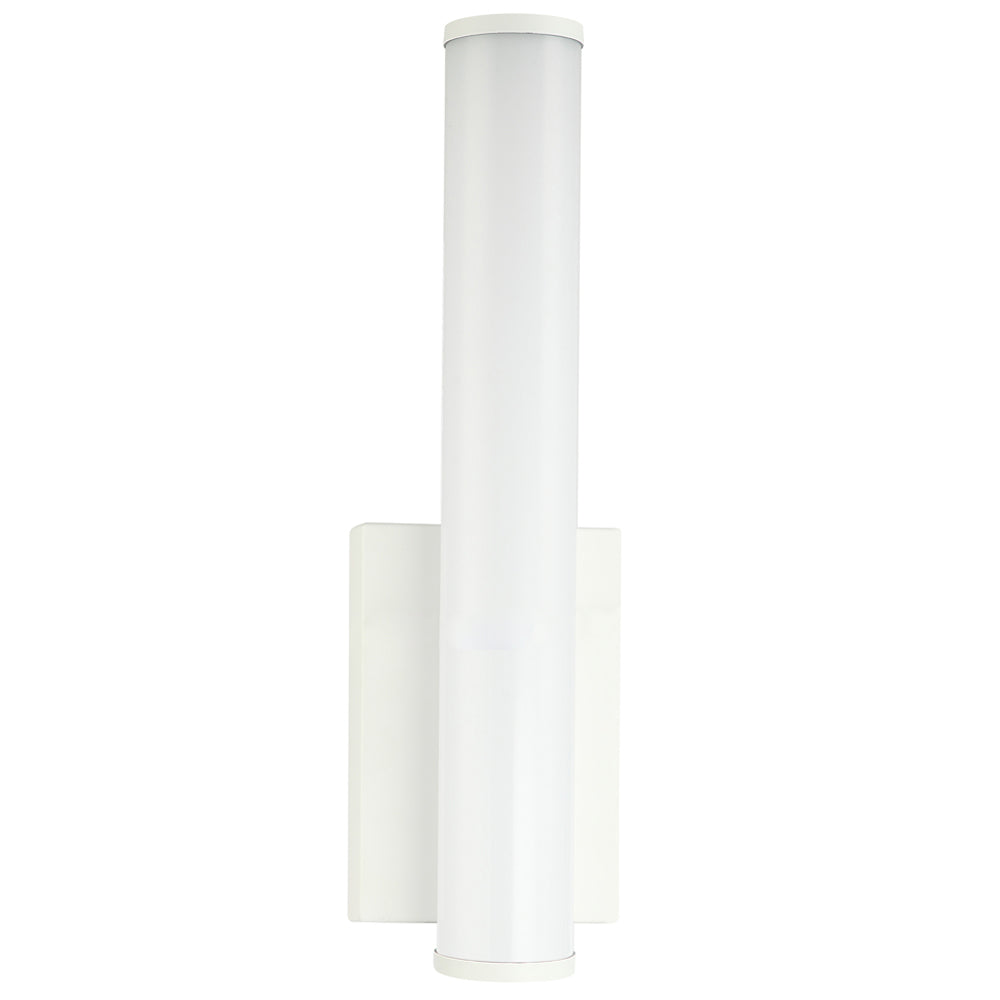

3000K, 0-10V Dimming, Cylinder Linear Direct Wall Mount Dedicated LED, White Acrylic Lens in White, Vertical Mount
| Part Number | MXL6671-02-1-30K |
| Made in Canada | Yes |
| Finish | Matte White |
| Lens | White Acrylic |
| Dimensions | W2.375″ X H12.25″ X E3.75″ |
| Maximum Dimensions | W5″ X H12.25″ X E3.75″ |
| Wattage | 10 |
| Delivered Lumens | 850 |
| Disclaimer: Delivered Lumens are based on calculations – Please contact factory for IES Files if required. | |
| Dimmable | Yes |

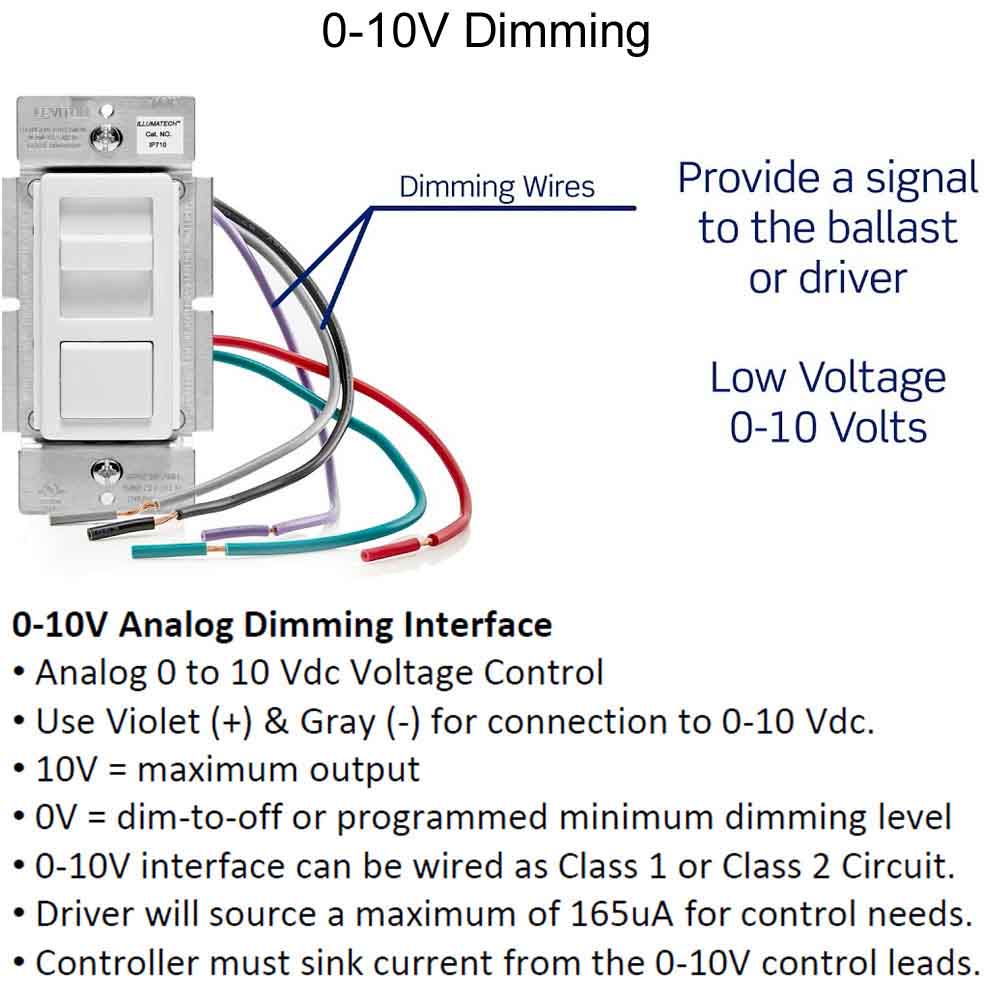

| Type of Dimmer | 0-10V |
| Dimming Percentage | 0%-100% |
| CRI | 90 |
| LED Life | L85/50Khrs. |
| Color Temperature | 3000 |
| Color Temperature Options | 27K-30K-35K-40K-50K MOQ may apply |
| LED Type | Module & Driver |
| Location | Damp Rated |
| Warranty | 5 Year Limited |
| Bulbs Included | 1 X 10 Watt Integrated LED |
| Certification | c-CSA-us or Equivalent |
| Voltage | 120 |
| Optional voltage | 347 |
